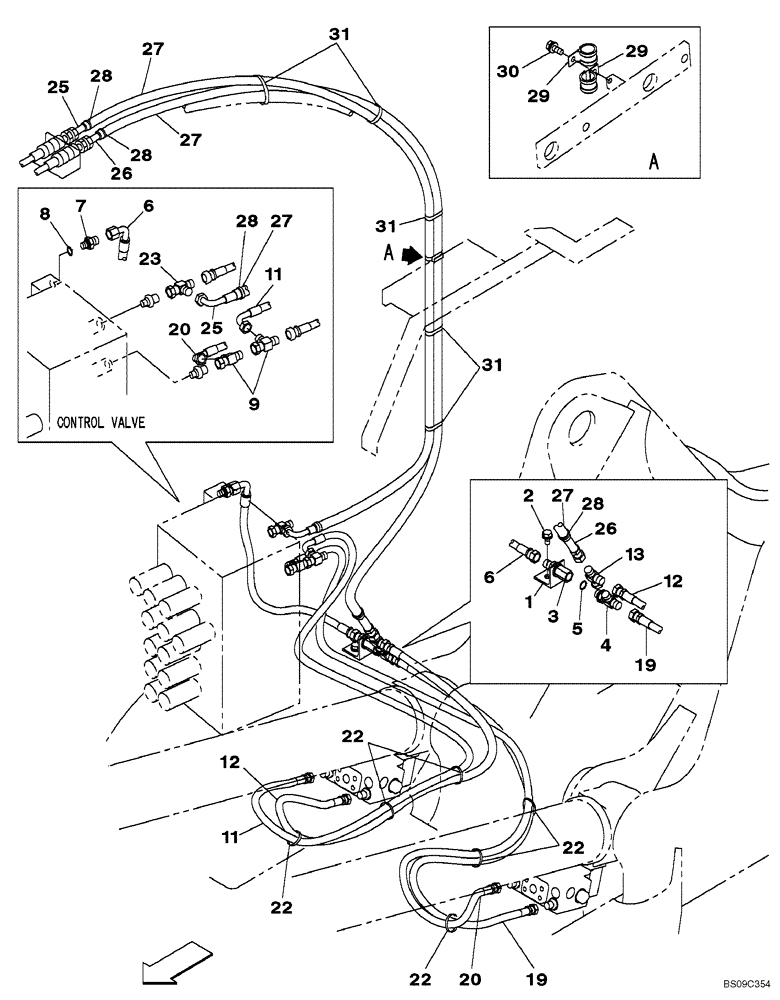

Запчасти Case CX225SR (08-30) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KRJ23030

BRACKET

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

1шт.

3

KHJ1078

ADAPTER

1шт.

4

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl 5

1шт.

5

154475A1

O-RING

1шт.

6

KHJ17850

HOSE

1шт.

7

152747A1

ADAPTER

Incl 7

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ2234

TEE

2шт.

11

KHJ19750

HYDRAULIC HOSE,2700.00 mm

1шт.

12

KHJ16830

HYDRAULIC HOSE

1шт.

13

KHJ2234

TEE

1шт.

19

KHJ19740

HYDRAULIC HOSE,2300.00 mm

1шт.

20

KHJ19760

HYDRAULIC HOSE,25.40 mm ID x 2800.00 mm

1шт.

22

150496A1

MOUNTING CLIP

250 mm

6шт.

23

KHJ2234

TEE

1шт.

25

KHJ2635

HYDRAULIC HOSE,9.50 mm ID x 3050.00 mm

1шт.

26

KTJ1524

HYDRAULIC HOSE

3250 mm

1шт.

27

151175A1

PLASTIC-RUBBER TUBE

3000 mm

2шт.

28

150067A1

MOUNTING CLIP

150 mm

4шт.

29

KHJ1080

HOSE CLAMP

2шт.

30

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

31

150498A1

MOUNTING CLIP

300 mm

5шт.
