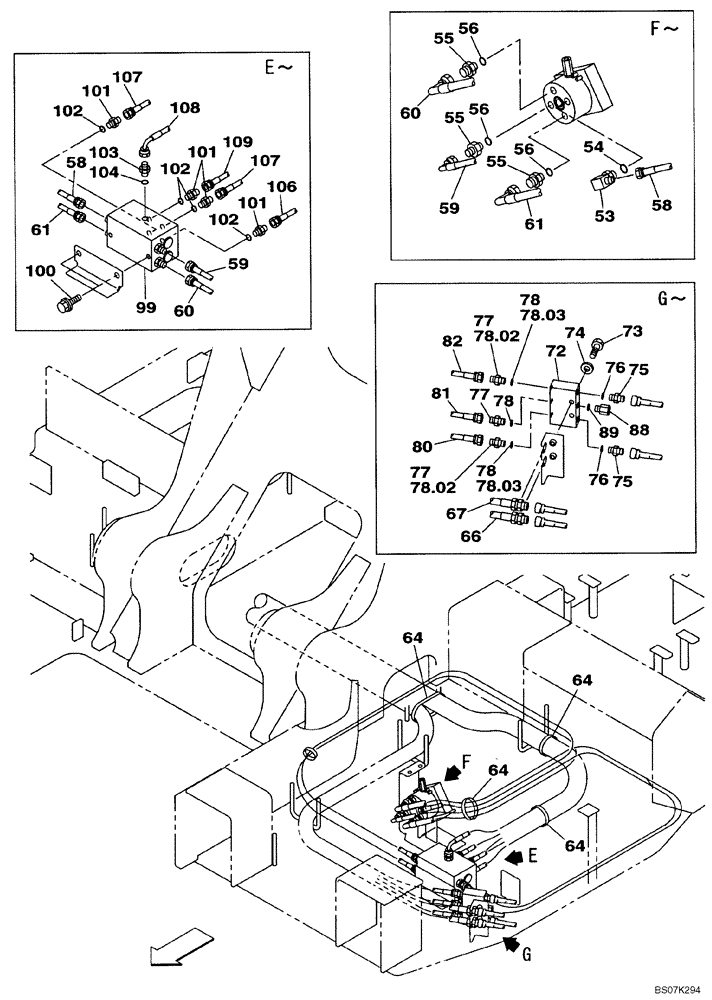

Запчасти Case CX225SR (08-28) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

53

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 54

1шт.

54

154475A1

O-RING

1шт.

55

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 56

3шт.

56

154475A1

O-RING

1шт.

58

KHJ2383

HOSE

1шт.

59

KHJ2106

HOSE

1шт.

60

KHJ2106

HOSE

1шт.

61

KHJ2107

HOSE,9.5mm ID x 2400mm L

1шт.

64

150498A1

MOUNTING CLIP

1шт.

66

KHJ2348

HOSE

1шт.

67

KHJ2390

HOSE

1шт.

72

KHJ17110

VALVE

1шт.

73

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

74

153081A1

WASHER

2шт.

75

152747A1

ADAPTER

Incl. 76

4шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78.02

152747A1

ADAPTER

2шт.

78.03

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

KHJ2102

HOSE

1шт.

81

KHJ2081

HOSE

3200 mm (126 in)

1шт.

82

KHJ2102

HOSE

1шт.

88

153412A1

SOCKET

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KRJ6912

VALVE

See Figure 08-76

1шт.

100

166052A1

BOLT

M10X25

2шт.

101

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 102

4шт.

102

154475A1

O-RING

1шт.

103

KHJ2136

ADAPTER

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ2476

HOSE

3550 mm (139-7/8 in)

1шт.

107

KHJ2475

HOSE

2850 mm (112-1/4 in)

2шт.

108

KHJ2248

HOSE

3000 mm (118-1/8 in)

1шт.

109

KHJ2178

HOSE

3700 mm (145-3/4 in)

1шт.
