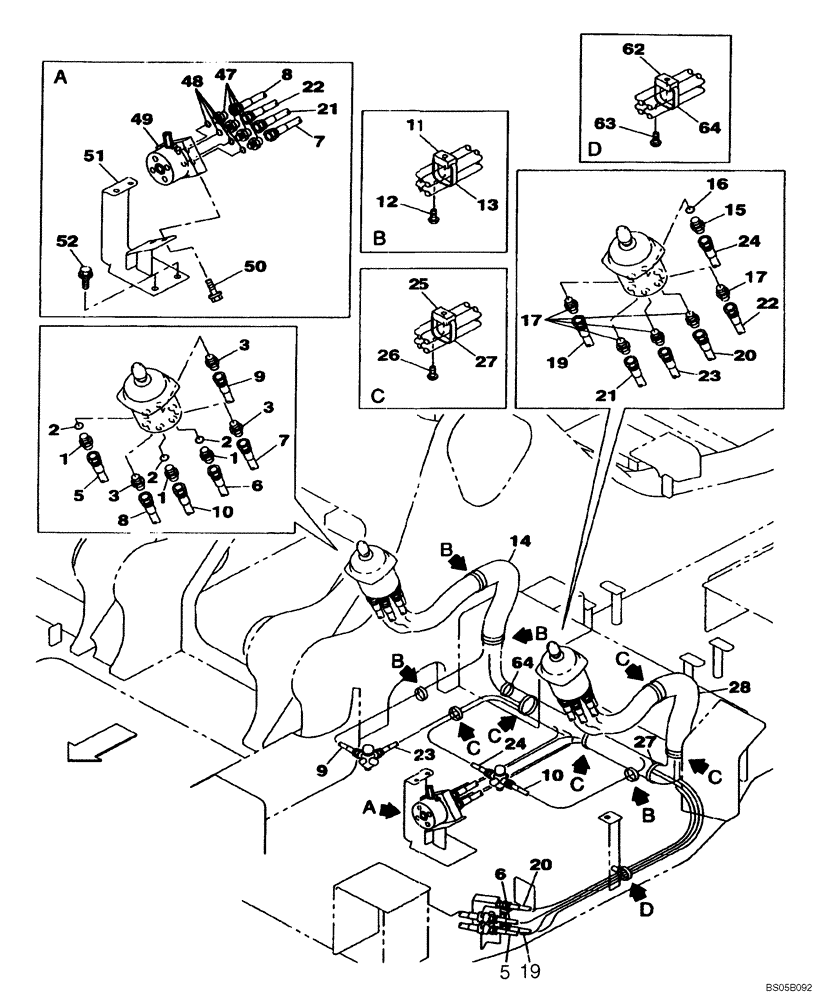

Запчасти Case CX225SR (08-27) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2478

HOSE

2300 mm (90-5/8 in)

1шт.

6

KHJ2478

HOSE

2300 mm (90-5/8 in)

1шт.

7

KHJ2182

HOSE

1450 mm (57-1/8 in)

1шт.

8

KHJ2182

HOSE

1450 mm (57-1/8 in)

1шт.

9

KHJ2182

HOSE

1450 mm (57-1/8 in)

1шт.

10

KHJ2333

HOSE

1920 mm (75-5/8 in)

1шт.

11

150860A1

COLLAR

4шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

13

150498A1

MOUNTING CLIP

1шт.

14

KHJ2578

PROTECTOR

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

161841A1

HYD CONNECTOR

5шт.

19

KHJ2387

HOSE

1550 mm (61 in)

1шт.

20

KHJ2387

HOSE

1550 mm (61 in)

1шт.

21

KHJ2387

HOSE

1550 mm (61 in)

1шт.

22

KHJ2387

HOSE

1550 mm (61 in)

1шт.

23

KHJ2335

HOSE

1780 mm (70-1/8 in)

1шт.

24

KHJ2336

HOSE

1800 mm (70-7/8 in)

1шт.

25

150860A1

COLLAR

5шт.

26

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

27

150498A1

MOUNTING CLIP

250 mm

1шт.

28

KHJ2578

PROTECTOR

1шт.

47

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 49

4шт.

48

154475A1

O-RING

1шт.

49

KHJ2556

VALVE

See Figure 08-63

1шт.

50

166351A1

BOLT,Sems, M10 x 20mm

2шт.

51

KRJ6999

BRACKET

1шт.

52

166052A1

BOLT

2шт.

62

150860A1

COLLAR

1шт.

63

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

64

150498A1

MOUNTING CLIP

1шт.
