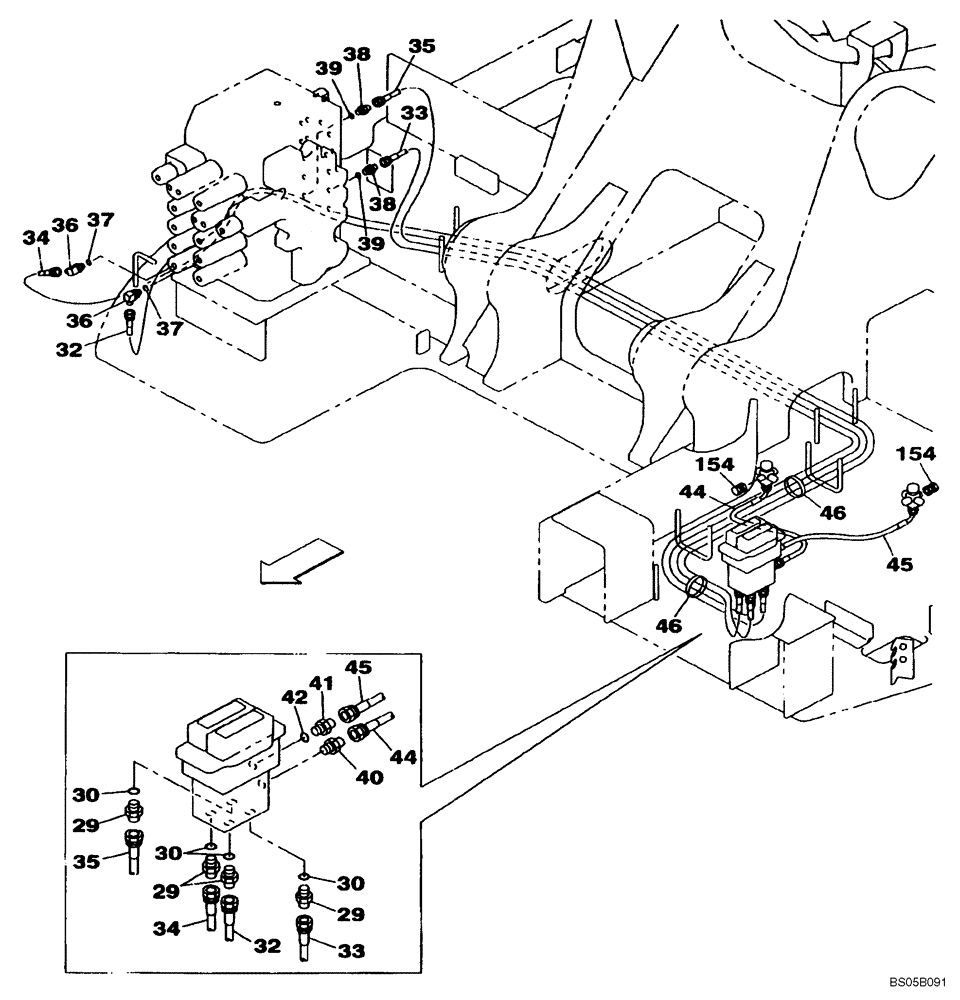

Запчасти Case CX225SR (08-26) - PILOT CONTROL LINES, TRAVEL - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 30

4шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KHJ2389

HOSE

3650 mm (143-3/4 in)

1шт.

33

KHJ2076

HOSE,6mm ID x 2750mm L

2750 mm (108-3/8 in)

1шт.

34

KHJ2083

HOSE

3500 mm (137-7/8 in)

1шт.

35

KHJ2162

HOSE

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

2шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 37

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

161841A1

HYD CONNECTOR

1шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 40

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

KHJ1507

HYDRAULIC HOSE,6.35 mm ID x 420.00 mm

1шт.

45

168728A1

HYDRAULIC HOSE,6.30 mm ID x 400.00 mm

1шт.

46

150498A1

MOUNTING CLIP

250 mm

3шт.

154

158842A1

PLUG

2шт.
