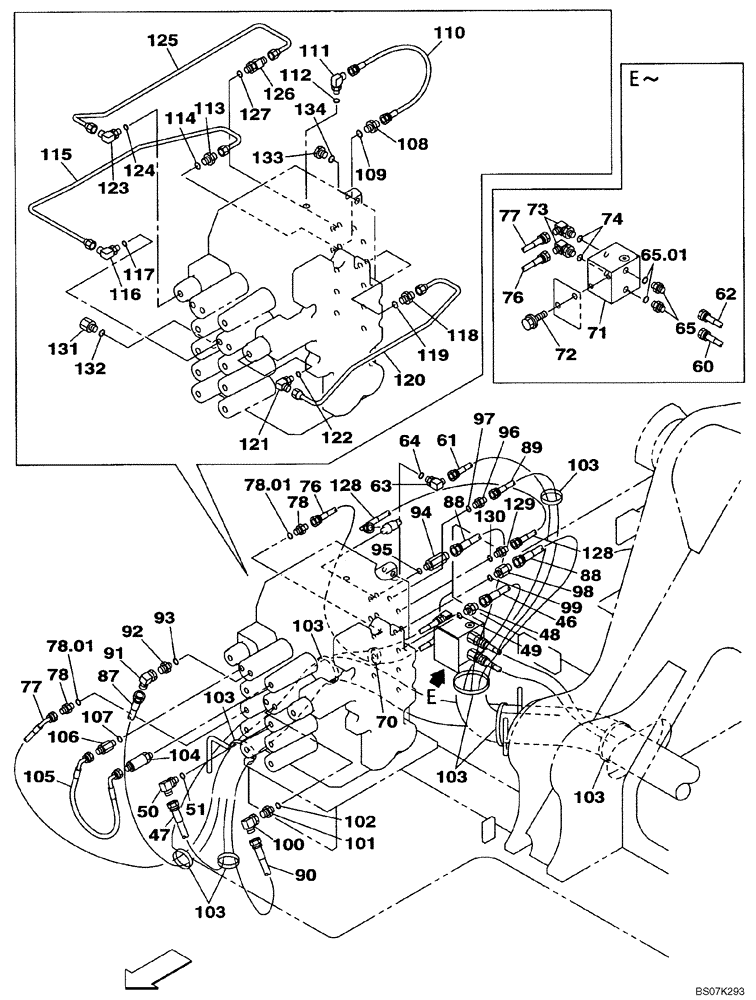

Запчасти Case CX225SR (08-25) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
46
KHJ2348
HOSE
3200 mm (126 in)
1шт.
47
KHJ2390
HOSE
3900 mm (153-5/8 in)
1шт.
48
152747A1
ADAPTER
Incl. 49
1шт.
49
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
50
153559A1
ELBOW
Incl. 51
1шт.
51
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
60
KHJ2102
HOSE
1шт.
61
KHJ2081
HOSE
3200 mm (126 in)
1шт.
62
KHJ2102
HOSE
1шт.
63
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 64
1шт.
64
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
65
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 65.01
2шт.
65.01
154475A1
O-RING
2шт.
70
150498A1
MOUNTING CLIP
250 mm
1шт.
71
KHJ2618
VALVE, CUSHION
See Figure 08-74
1шт.
72
166351A1
BOLT,Sems, M10 x 20mm
2шт.
73
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 74
1шт.
74
154475A1
O-RING
1шт.
76
KHJ2623
HOSE
1шт.
77
KHJ2624
HOSE
1шт.
78
KHJ2619
FITTING
Incl. 78.01
2шт.
78.01
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
87
KHJ2476
HOSE
3550 mm (139-7/8 in)
1шт.
88
KHJ2475
HOSE
2850 mm (112-1/4 in)
2шт.
89
KHJ2248
HOSE
3000 mm (118-1/8 in)
1шт.
90
KHJ2178
HOSE
3700 mm (145-3/4 in)
1шт.
91
153526A1
ELBOW
1шт.
92
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 93
1шт.
93
154475A1
O-RING
1шт.
94
KAJ2351
FITTING
Incl. 95
1шт.
95
154475A1
O-RING
1шт.
96
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 97
1шт.
97
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
98
150812A1
ADAPTER
Incl. 99
1шт.
99
154475A1
O-RING
1шт.
100
153526A1
ELBOW
1шт.
101
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 102
1шт.
102
154475A1
O-RING
1шт.
103
150498A1
MOUNTING CLIP
250 mm
1шт.
104
KHJ1399
VALVE, CUSHION
See Figure 08-62
1шт.
105
KHJ2350
HOSE
520 mm (20-1/2 in)
1шт.
106
162554A1
FITTING
Incl. 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
153378A1
ADAPTER
Incl. 109
1шт.
109
154475A1
O-RING
1шт.
110
KHJ2142
HOSE
1шт.
111
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 112
1шт.
112
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
113
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 114
1шт.
114
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
KRJ6098
HYD TUBE,6 mm ID x 8 mm OD
1шт.
116
KHJ1391
COUPLING
Incl. 117
1шт.
117
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 119
1шт.
119
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
120
KRJ6099
HYD TUBE,6 mm ID x 8 mm OD
1шт.
121
KHJ1391
COUPLING
Incl. 122
1шт.
122
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
123
KHJ1391
COUPLING
Incl. 124
1шт.
124
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
125
KRJ6998
HYD TUBE
1шт.
126
KHJ2131
TEE
Incl. 127
1шт.
127
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
128
KHJ2351
HOSE
420 mm (16-5/8 in)
1шт.
129
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
131
KHJ11450
ADAPTER
Incl. 132
1шт.
132
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
133
159002A1
PLUG
Incl. 134
1шт.
134
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 70
