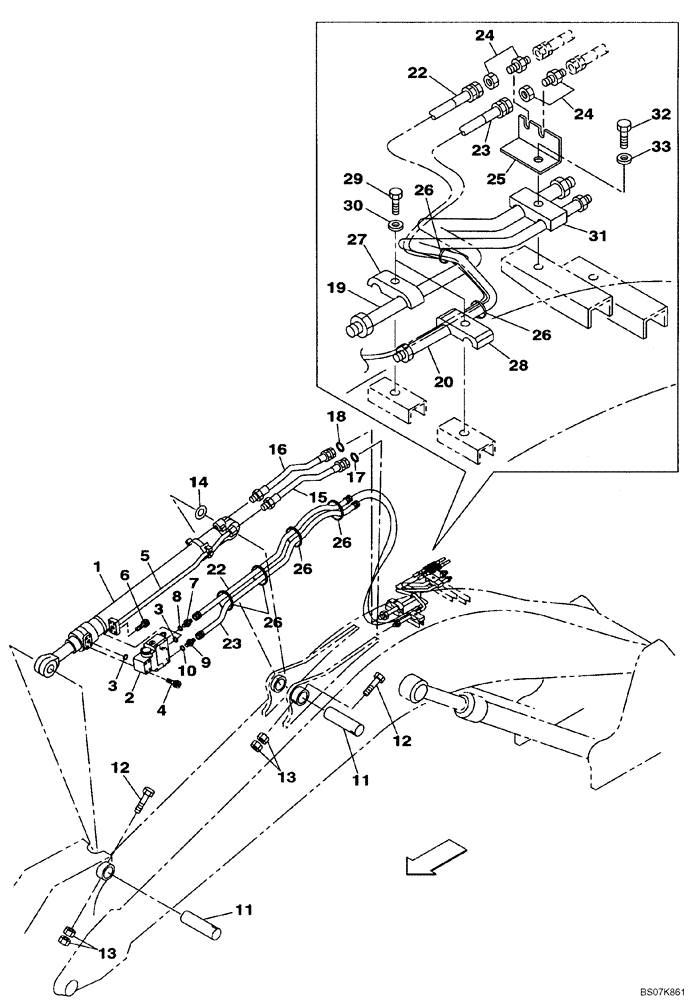

Запчасти Case CX225SR (08-19) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

CYLINDER ASSY., Arm, Models With Load Hold, See Figure 08-57

1шт.

2

KRV11120

VALVE SECTION

Replaced by KSV17260, See Figure 08-70

1шт.

2

KSV17260

SAFETY VALVE

1шт.

3

155211A1

O-RING

2шт.

4

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

5

KRV26310

HYD TUBE

TUBE ASSY.

1шт.

6

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

10

154475A1

O-RING

1шт.

11

159738A1

PIN,80mm OD x 273mm L

2шт.

12

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

13

829-11420

NUT,M20 x 1.5, Cl 10

4шт.

14

159741A1

SHIM

1шт.

15

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

16

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

17

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KRV3556

HYD TUBE

1шт.

20

KRV3557

HYD TUBE

1шт.

22

KHJ18310

HYDRAULIC HOSE

HOSE

1шт.

23

KHJ18310

HYDRAULIC HOSE

HOSE

1шт.

24

162826A1

ADAPTER

2шт.

25

KRV3506

BREATHER

1шт.

26

150067A1

MOUNTING CLIP

12шт.

27

151489A1

CLAMP

1шт.

28

159742A1

COLLAR

1шт.

29

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

30

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

31

153186A1

COLLAR

1шт.

32

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

33

150811A1

WASHER

1шт.
