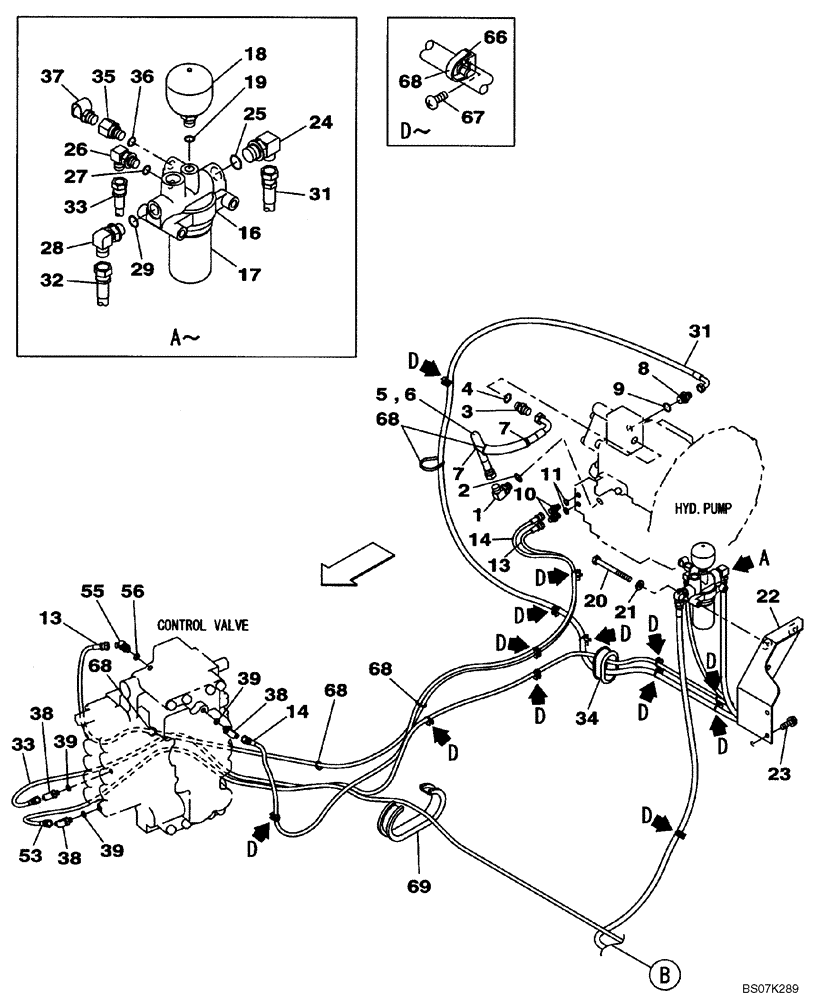

Запчасти Case CX225SR (08-16) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 4

1шт.

4

154487A1

O-RING

1шт.

5

KRJ20960

HYDRAULIC HOSE

Assy

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE, CORRUGATED

1шт.

7

150067A1

MOUNTING CLIP

2шт.

8

161084A1

ADAPTER

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

157851A1

HOSE

1шт.

14

159007A1

HOSE

1шт.

16

KHJ17720

FILTER HEAD

1шт.

17

KHJ17730

HYDRAULIC OIL FILTER

1шт.

18

KHJ2359

ACCUMULATOR

Incl. 19

1шт.

19

154487A1

O-RING

1шт.

20

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

21

150409A1

WASHER

M10

2шт.

22

KRJ20971

SUPPORT

BRACKET, Replaces KRJ20970

1шт.

23

166347A1

BOLT,Sems, M10 x 30mm

M10X30

2шт.

24

157935A1

ELBOW

Incl. 25

1шт.

25

154487A1

O-RING

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 29

1шт.

29

154475A1

O-RING

1шт.

31

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

32

KHJ2417

HOSE

1шт.

33

KHJ2081

HOSE

1шт.

34

KRH1504

GROMMET

1шт.

35

KHJ2620

BUSHING

Incl. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

1541849C1

COUPLING

1шт.

53

KHJ2081

HOSE

1шт.

55

150966A1

HOSE ASSY.

Incl. 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

150860A1

COLLAR

13шт.

67

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

13шт.

68

150496A1

MOUNTING CLIP

19шт.

69

162522A1

RUBBER BLOCK

1шт.
