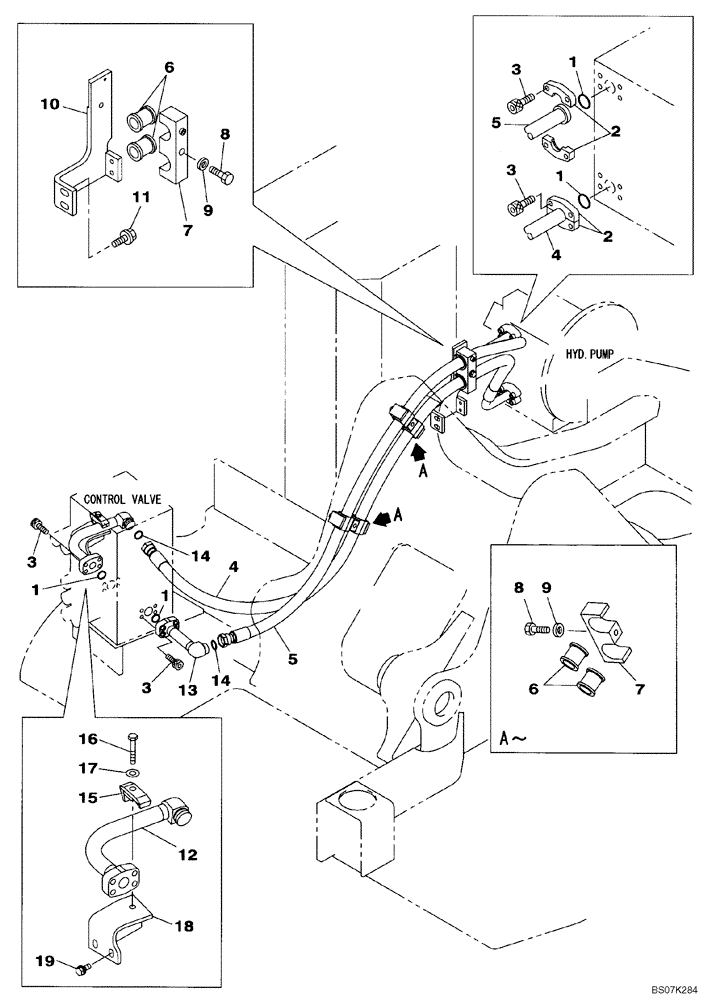

Запчасти Case CX225SR (08-09) - HYDRAULICS - CONTROL VALVE SUPPLY (08) - HYDRAULICS

1

155211A1

O-RING

, Serial Range: -1

4шт.

2

150561A1

FLANGE

4шт.

3

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

16шт.

4

KRJ22810

HYDRAULIC HOSE

Replaces KRJ19330

1шт.

5

KRJ19340

HYDRAULIC HOSE

If Used

1шт.

6

KHJ2679

HOSE CLAMP

6шт.

7

KHJ2448

CLAMP

3шт.

8

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

Replaces 827-12080

3шт.

9

150811A1

WASHER

3шт.

10

KRJ19180

SUPPORT

BRACKET

1шт.

11

166352A1

BOLT

M12X30

2шт.

12

KRJ19350

HYD TUBE

TUBE ASSY.

1шт.

13

KRJ19360

HYD TUBE

TUBE ASSY.

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

15

152974A1

COLLAR

1шт.

16

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

1шт.

17

150409A1

WASHER

1шт.

18

KRJ19321

BRACKET

Replaces KRJ19320

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Replaces 166052A1

2шт.

20

151977A1

WASHER

Not Shown

2шт.
