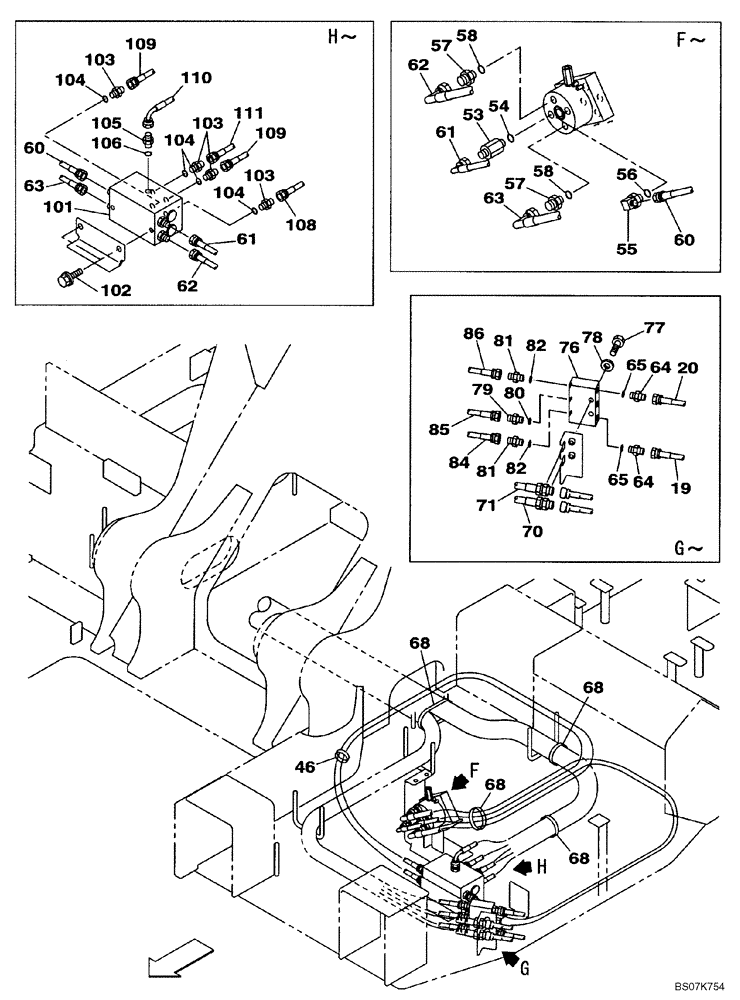

Запчасти Case CX225SR (08-06) - PILOT CONTROL LINES, ATTACHMENT - OPTIONAL (2-WAY) - WITH DOZER BLADE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
19
KHJ2387
HOSE
1550 mm (61 in)
1шт.
20
KHJ2387
HOSE
1550 mm (61 in)
1шт.
46
150498A1
MOUNTING CLIP
3шт.
53
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 54
1шт.
54
154475A1
O-RING
1шт.
55
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 56
1шт.
56
154475A1
O-RING
1шт.
57
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 58
2шт.
58
154475A1
O-RING
1шт.
60
KHJ2383
HOSE
2350 mm (92 1/2 in)
1шт.
61
KHJ2106
HOSE
1600 mm (63 in)
1шт.
62
KHJ2106
HOSE
1600 mm (63 in)
1шт.
63
KHJ2107
HOSE,9.5mm ID x 2400mm L
2400 mm ( 94 1/2 in)
1шт.
64
152747A1
ADAPTER
Incl. 65
2шт.
65
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
68
150498A1
MOUNTING CLIP
6шт.
70
KHJ2348
HOSE
3200 mm (126 in)
1шт.
71
KHJ2390
HOSE
3900 mm (153-5/8 in)
1шт.
76
KHJ17110
VALVE
1шт.
77
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
78
153081A1
WASHER
2шт.
79
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 80
1шт.
80
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
81
152747A1
ADAPTER
Incl. 82
2шт.
82
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
84
KHJ2102
HOSE
1шт.
85
KHJ2081
HOSE
3200 mm (126 in)
1шт.
86
KHJ2102
HOSE
2700 mm (106 1/4 in)
1шт.
101
KRJ6912
VALVE
1шт.
102
166052A1
BOLT
M10X25
2шт.
103
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 104
4шт.
104
154475A1
O-RING
1шт.
105
KHJ2136
ADAPTER
Incl. 106
1шт.
106
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
KHJ2476
HOSE
3550 mm (139-7/8 in)
1шт.
109
KHJ2475
HOSE
2850 mm (112-1/4 in)
2шт.
110
KHJ2248
HOSE
3000 mm (118-1/8 in)
1шт.
111
KHJ2178
HOSE
3700 mm (145-3/4 in)
1шт.
Выбрано товаров: 38
