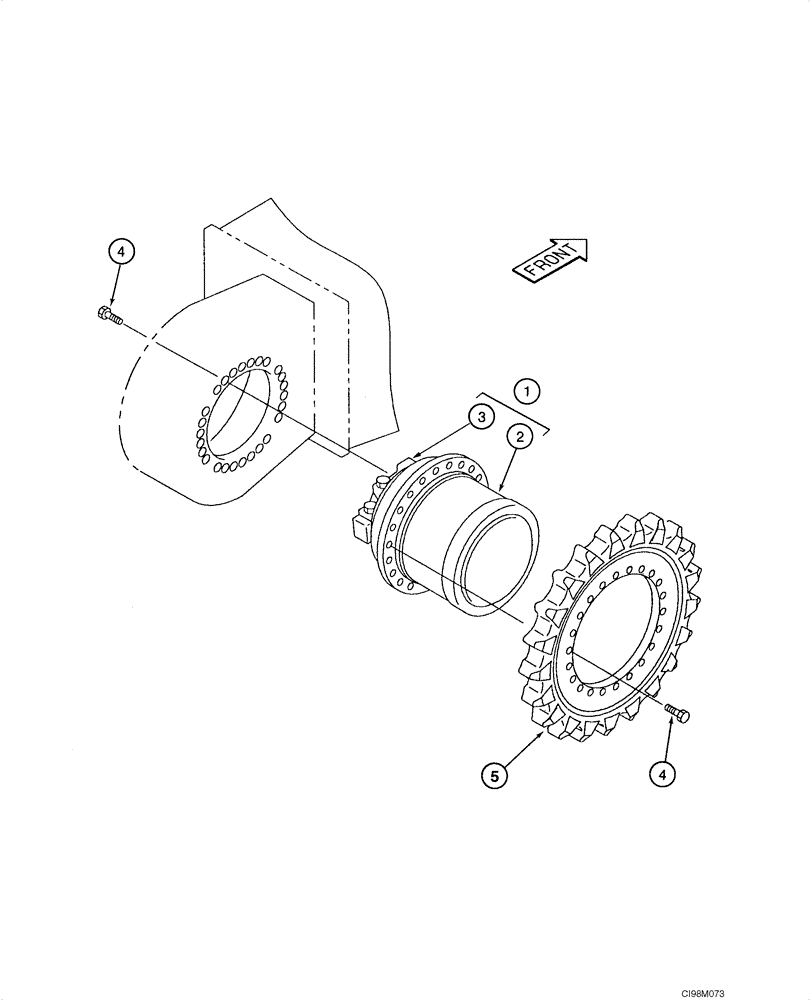

Запчасти Case CX225SR (06-01) - TRACK DRIVE ASSY (06) - POWER TRAIN

1

KBA1024

MOTO-REDUCTION GEAR

Incl. 2, 3, No Longer Available, Order KBA1318

2шт.

1

KBA1318

MOTO-REDUCTION GEAR

Incl. 2, 3

2шт.

2

REF

INSTRUCTION

Reducer, See Figure 06-02

1шт.

3

REF

INSTRUCTION

Motor, Hydraulic, See Figure 06-03

1шт.

4

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

96шт.

4b

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Not Illustrated

96шт.

5

KRA1665

SPROCKET

2шт.
