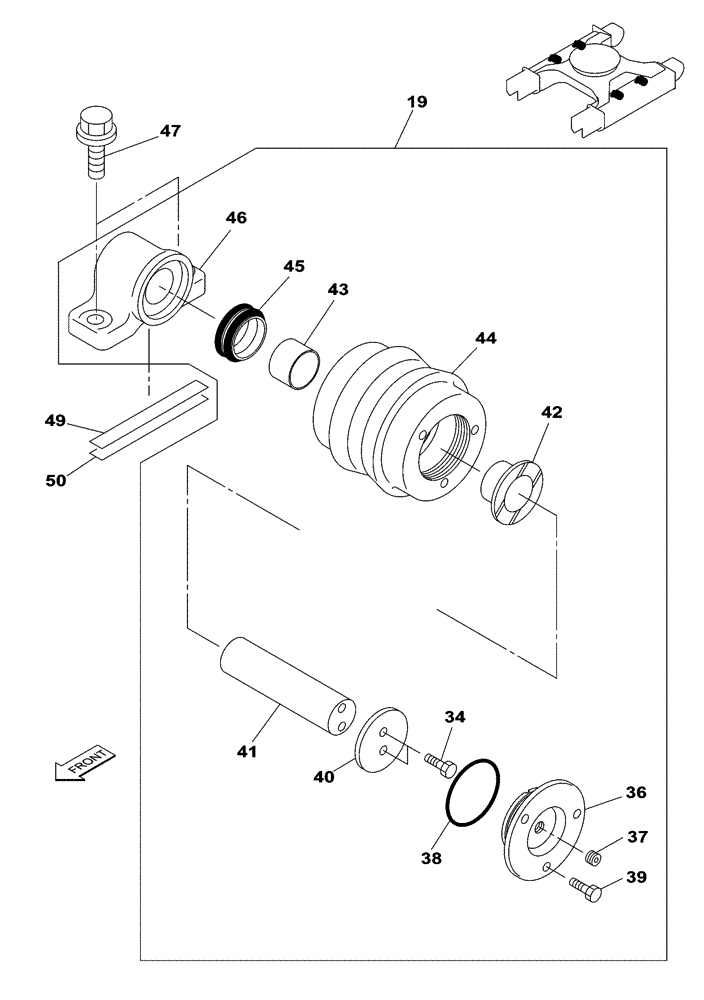

Запчасти Case CX225SR (05-08) - TRACK - ROLLER, UPPER (05) - STEERING

19

KRA13750

TRACK ROLLER

4шт.

Include(s) 34,36 - 46

1шт.

34

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

36

KRA1719

COVER

1шт.

37

150821A1

PLUG

1шт.

38

154667A1

O-RING

1шт.

39

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

40

159685A1

PLATE, THRUST

1шт.

41

159692A1

WHEEL SHAFT

1шт.

42

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

1шт.

43

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

1шт.

44

KRA1718

TRACK ROLLER,140mm OD x 156mm W

1шт.

45

159399A1

SEAL,56mm ID x 76mm OD x 25mm Thk

1шт.

46

KRA13740

CASING, BEARING ROLL

1шт.

47

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

8шт.
