(05-05) - TRACK CHAINS - STEEL (P.I.N. DAC0825119 - )

Запчасти Case CX225SR (05-05) - TRACK CHAINS - STEEL (P.I.N. DAC0825119 - ) (05) - STEERING

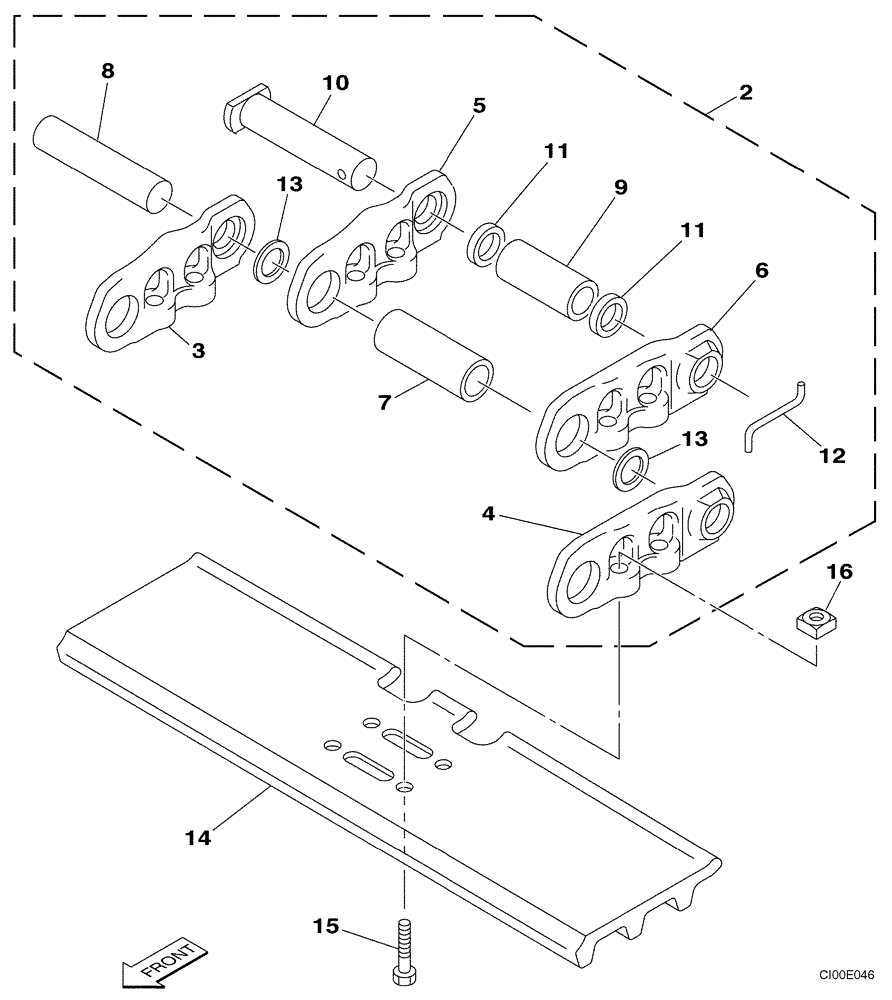

Схема запчастей Case CX225SR - (05-05) - TRACK CHAINS - STEEL (P.I.N. DAC0825119 - ) (05) - STEERING
14
4
3
8
6
13
2
13
9
5
10
12
16
7
11
15
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KRA1805

CHAIN (CE)

Incl. 3 - 13, No Longer Available As An Assembly; Service With KRP2529PECA Link Assy (1) And KLP0161PECA Nut (196)

1шт.

3

KRA1807

LINK

Right

48шт.

4

KRA1808

LINK

Left

48шт.

5

KRA1809

LINK

R.H

1шт.

6

KRA1810

LINK CHAIN

L.H

1шт.

7

KRA1811

BUSHING

48шт.

8

KRA11110

PIN

Replaces KRA1567

48шт.

9

KRA1569

BUSHING

1шт.

10

159676A1

HEADED PIN,36.3mm OD x 208mm L

1шт.

11

159673A1

SPACER, RING

2шт.

12

159677A1

COTTER PIN,8mm OD

1шт.

13

KRA1814

DUST CAP

96шт.

14

165934A1

TRACK SHOE

Width 600 mm (23-5/8 in)

98шт.

14

159416A1

TRACK SHOE

Width 700 mm (27-5/8 in)

98шт.

14

159397A1

TRACK SHOE

Width 800 mm (31-1/2 in)

98шт.

15

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

392шт.

16

151767A1

NUT

392шт.

KRP2529PECA

LINK

Aftermarket Track Chain Assembly, Also Order KLP0161PECA Nuts

2шт.

KLP0161PECA

NUT

392шт.
