(05-04) - TRACK CHAINS - STEEL (P.I.N. DAC0825101 - DAC0815118)

Запчасти Case CX225SR (05-04) - TRACK CHAINS - STEEL (P.I.N. DAC0825101 - DAC0815118) (05) - STEERING

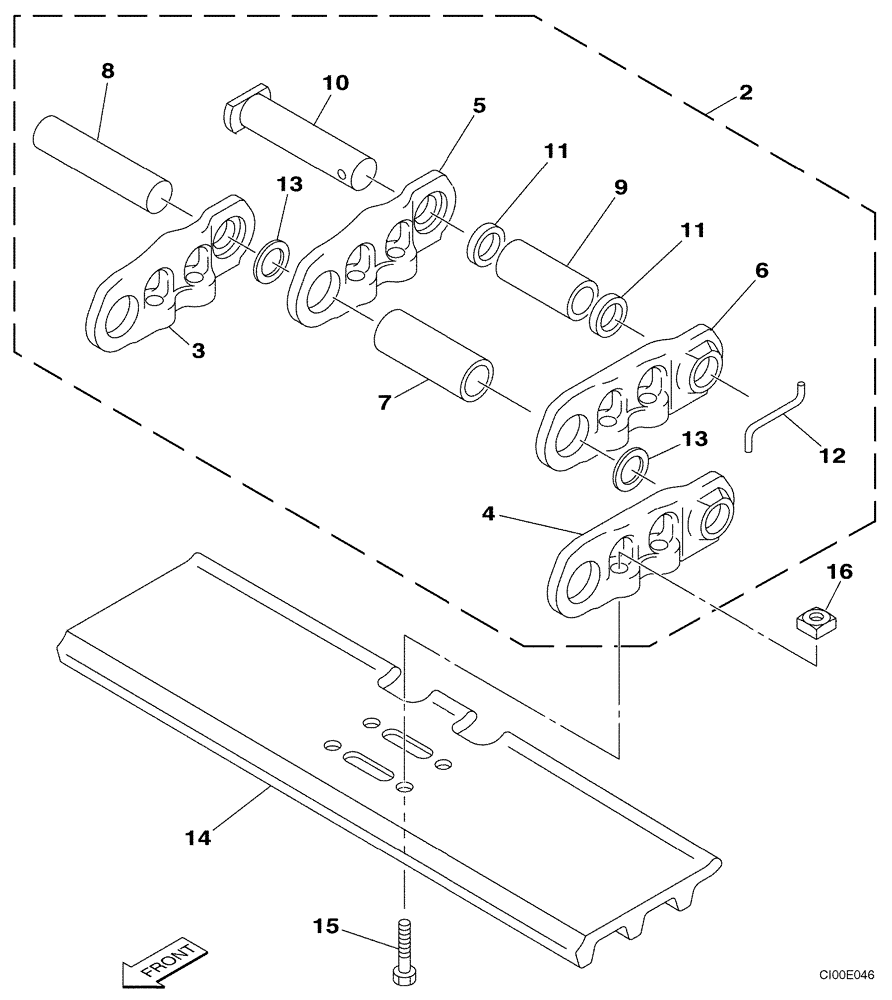

Схема запчастей Case CX225SR - (05-04) - TRACK CHAINS - STEEL (P.I.N. DAC0825101 - DAC0815118) (05) - STEERING
16
15
7
11
9
2
13
13
6
5
12
11
14
3
10
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

168274A1

CHAIN (CE)

Incl. 3 - 13; No Longer Available As An Assembly, Service With KRP2529PECA Link Assy (1) And KRP2529PECA Nut (196)

2шт.

3

159670A1

LINK

48шт.

4

159671A1

LINK

48шт.

5

168654A1

LINK

1шт.

6

168655A1

LINK

1шт.

7

168651A1

BUSHING

48шт.

8

159672A1

PIN

48шт.

9

168652A1

BUSHING

1шт.

10

159676A1

HEADED PIN,36.3mm OD x 208mm L

1шт.

11

159673A1

SPACER, RING

2шт.

12

159677A1

COTTER PIN,8mm OD

1шт.

13

168653A1

SEAL,39.8mm ID x 60.3mm OD x 5.6mm Thk

96шт.

14

165934A1

TRACK SHOE

Width 600 mm (23-5/8 in)

98шт.

14

159416A1

TRACK SHOE

Width 700 mm (27-5/8 in)

98шт.

14

159397A1

TRACK SHOE

Width 800 mm (31-1/2 in)

98шт.

15

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

392шт.

16

151767A1

NUT

392шт.

KRP2529PECA

LINK

Aftermarket Track Chain Assembly, Also Order KLP0161PECA Nuts

2шт.

KLP0161PECA

NUT

392шт.
