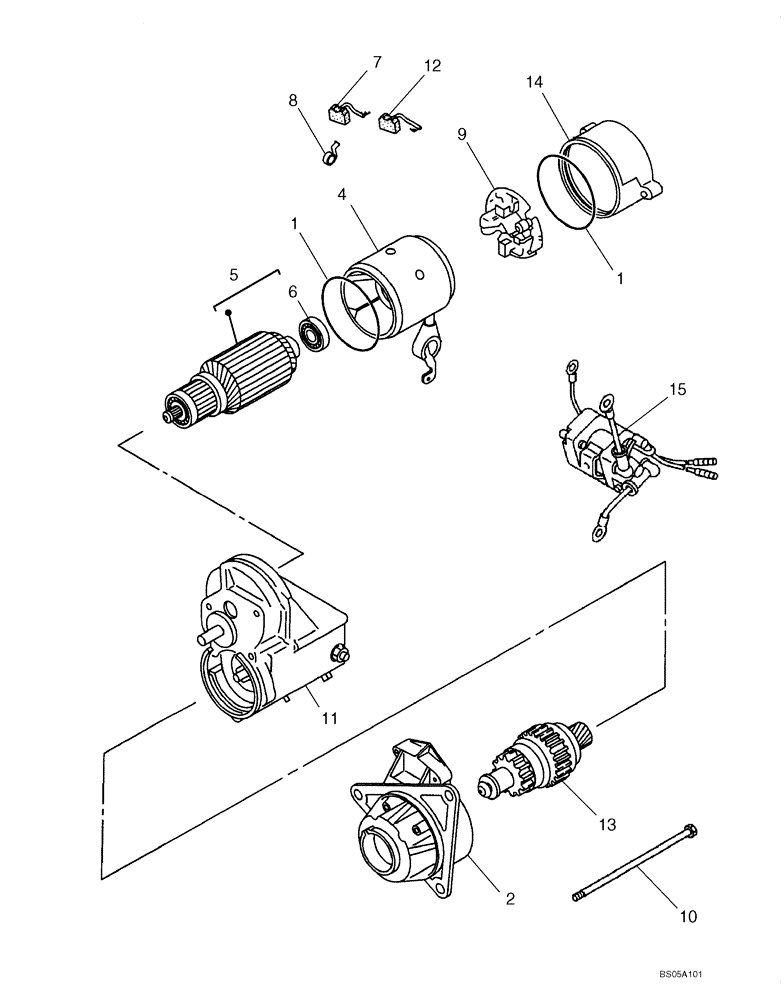

Запчасти Case CX225SR (04-14) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

288867A1

STARTING MOTOR

Incl. 1 - 15

1шт.

1

426180A1

SEAL KIT

1шт.

2

426181A1

HOUSING

1шт.

3

426182A1

BRACKET

Not Illustrated

1шт.

4

426183A1

SHIFTER FORK

1шт.

5

426184A1

ROTOR

Incl. 6

1шт.

6

426185A1

BALL BEARING

1шт.

7

426186A1

BRUSH, COMMUTATOR

BRUSH Positive

2шт.

8

426187A1

SPRING

4шт.

9

426188A1

BRUSH HOLDER

HOLDER, BRUSH

1шт.

10

426189A1

BOLT

4шт.

10

426190A1

BOLT

4шт.

11

87351046

SWITCH

Replaces 426191A1 and 87432530

1шт.

12

426192A1

BRUSH, COMMUTATOR

BRUSH Negative

2шт.

13

426193A1

CLUTCH

1шт.

14

426194A1

COVER

1шт.

15

426195A1

SOLENOID SWITCH

1шт.
