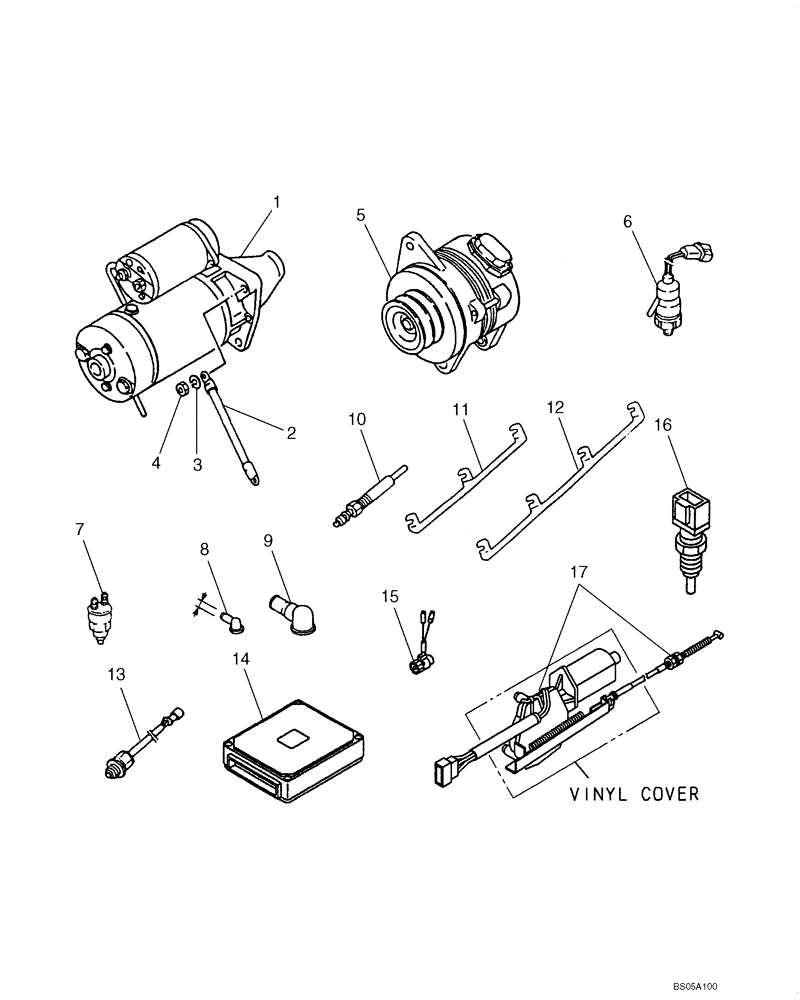

Запчасти Case CX225SR (04-13) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

1

288867A1

STARTING MOTOR

See Figure 04-14

1шт.

2

289982A1

CABLE

1шт.

3

289784A1

WASHER

3шт.

4

288630A1

NUT

M12

3шт.

5

87405690

ALTERNATOR

See Figure 04-15

1шт.

6

288883A1

PRESSURE SWITCH

Oil Pressure Sensor

1шт.

7

289737A1

SENSOR

Oil Temperature

1шт.

8

289983A1

CAP

2шт.

8

289984A1

CAP

4шт.

9

168003A1

DUST CAP

3шт.

10

288874A1

GLOW PLUG

6шт.

11

289564A1

CONNECTOR, ELEC

CONNECTOR

1шт.

12

289565A1

CONNECTOR, ELEC

CONNECTOR

1шт.

13

289391A1

SENSOR

Speed

1шт.

14

87408853

ECU

Replaces 288652A1

1шт.

14

87456830

ECU

Applied For Unit With Label 6BG1TABFE, Order 87399952

1шт.

14b

87456833

ECU

Not Illustrated, Applied For Unit With Label 6BG1TABFB

1шт.

15

288846A1

SENSOR

Engine Speed Sensor

1шт.

16

288817A1

SENSOR

Water Temperature

1шт.

17

288642A1

CIRCUIT BREAKER

Engine Shutoff

1шт.
