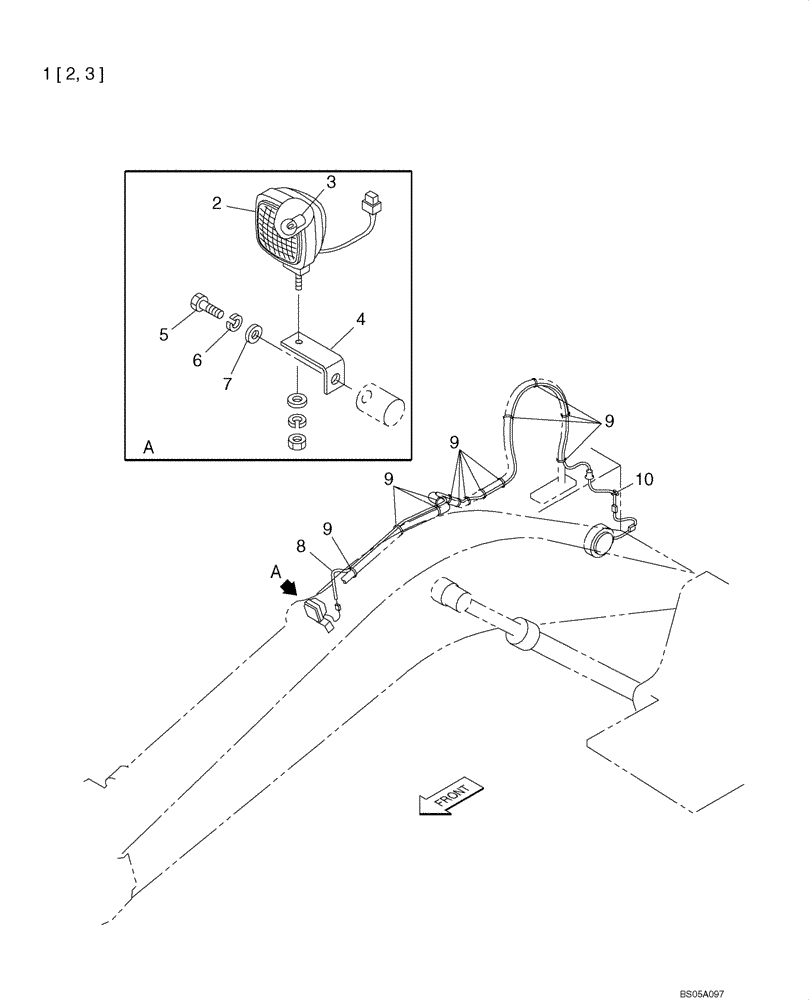

Запчасти Case CX225SR (04-10) - LAMP, WORK - BOOM (04) - ELECTRICAL SYSTEMS

1

KHR2475

WORK LAMP

Incl. 2, 3

1шт.

2

KHR2476

WORK LAMP

1шт.

3

KHR2477

BULB

1шт.

4

HEV0131

BRACKET

1шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

8

KRR1477

WIRE HARNESS

1шт.

9

150496A1

MOUNTING CLIP

250 mm

1шт.

10

KHR2787

CLAMP

1шт.
