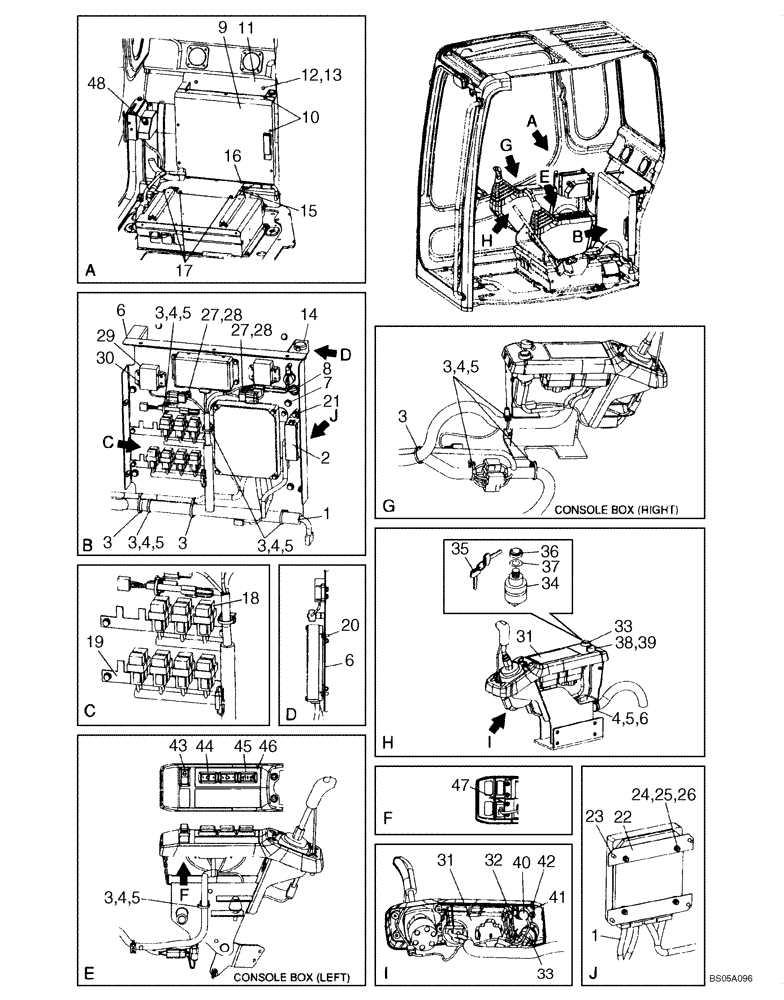

Запчасти Case CX225SR (04-03) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
KHR15810
WIRE HARNESS
Replaces KRR1571, Incl. 2
1шт.
2
NSS
NOT SOLD SEPARAT
Fuse Box
1шт.
2a
231959A1
DIODE
Not Illustrated
1шт.
3
150496A1
MOUNTING CLIP
250 mm
1шт.
4
150860A1
COLLAR
9шт.
5
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
9шт.
6
KHR4015
BRACKET
1шт.
7
166345A1
BOLT
4шт.
8
KMR0897
GROMMET
1шт.
9
KHR3903
COVER
1шт.
10
KHN2132
BOLT,Hex Flg Hd, M6 x 16
7шт.
11
KHR4043
COVER
1шт.
12
162571A1
BOLT,High Strength, M8 x 16mm
2шт.
13
159500A1
WASHER
2шт.
14
KHR2501
SOCKET
1шт.
15
KHR3905
COVER
1шт.
16
KHN2132
BOLT,Hex Flg Hd, M6 x 16
6шт.
17
KHN0482
WASHER
3шт.
18
KHR3802
RELAY
9шт.
19
KHR3807
BRACKET
2шт.
20
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
4шт.
21
159906A1
BOLT,Sems, Hex, M6 x 20mm, Spcl
2шт.
22
KHR3808
BRACKET
2шт.
23
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
4шт.
24
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
25
183-106VR
SPRING WASHER
4шт.
26
162R006SR
NUT
M6
4шт.
27
165405A1
CLIP
2шт.
28
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
2шт.
29
KHR3966
CONTROL UNIT
1шт.
30
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
4шт.
31
KHR3277
INSTRUMENT PANEL
1шт.
31
KHR4104R
REMAN-INSTR CLUSTER
CX225SR CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KHR3277
1шт.
31
KHR4104C
CORE-CLUSTER, INSTR
Return Number
1шт.
32
KHR3806
SELF-TAP SCREW
4шт.
33
KHR20050
IGNITION SWITCH
SWITCH, IGNITION, Incl. 34 - 37, Replaces KHR3270
1шт.
34
KHR3078
IGNITION SWITCH
1шт.
35
KHR20070
IGNITION KEY
KEY CASE, Replaces 150979A1
2шт.
36
KHR3080
CAP
1шт.
37
KHR3081
WASHER
1шт.
38
KHR2750
KNOB
1шт.
39
KHR2741
PACKING
1шт.
40
KHR2751
SWITCH
THROTTLE VOLUME
1шт.
41
KHR3561
BRACKET
1шт.
42
KHR2737
SELF-TAP SCREW
2шт.
43
KHR3967
TOGGLE SWITCH
1шт.
44
KHR3886
SWITCH
1шт.
45
KHR3965
TOGGLE SWITCH
1шт.
46
KHR3906
COVER
1шт.
47
KHR2737
SELF-TAP SCREW
4шт.
48
KHR2488
LIGHTER, CIGARETTE
1шт.
Выбрано товаров: 51
