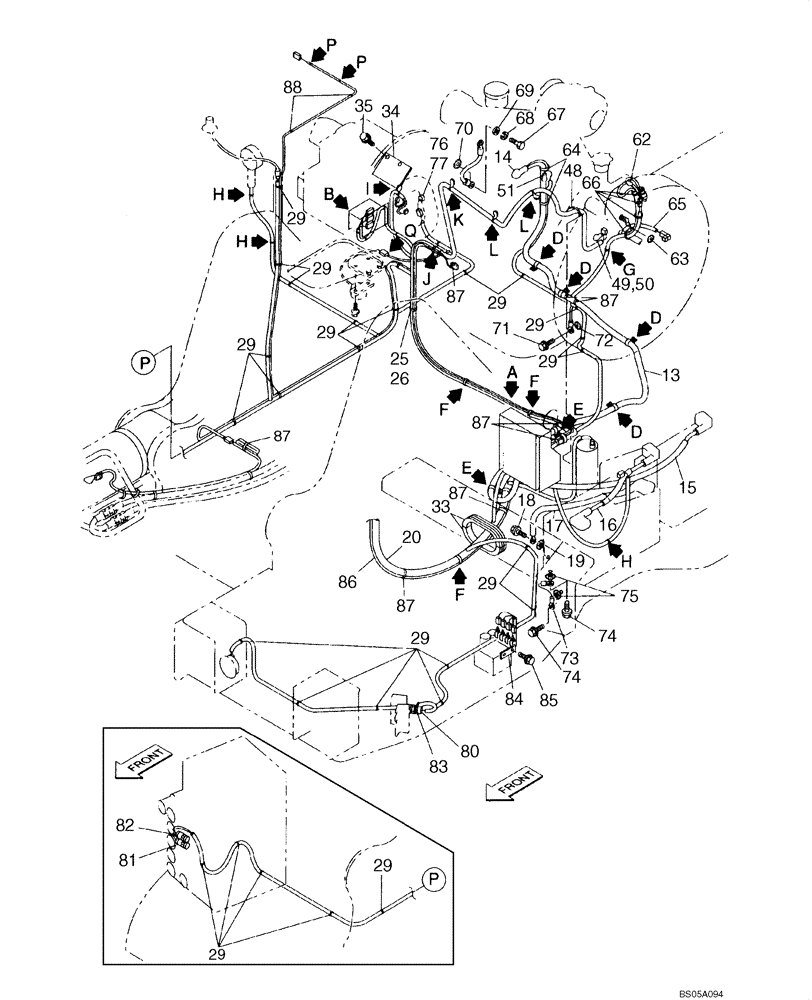

Запчасти Case CX225SR (04-01) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
13
KRR1465
CABLE ASSY.
1шт.
14
159184A1
CAP
1шт.
15
KRR1548
ELECTRIC CABLE
1шт.
16
KRR1549
ELECTRIC CABLE
1шт.
17
KMR0884
ELECTRIC CABLE
1шт.
18
167320A1
BOLT,Spcl, M8 x 20mm
1шт.
19
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
20
KRR1591
WIRE HARNESS
No Longer Available, Order KRR1611 Harness and KHR2583 (Ref 36, Fig. 04-02)
1шт.
20
KRR1611
WIRE HARNESS
1шт.
20a
KMR0926
HARNESS
Not Illustrated
1шт.
25
162151A1
CLAMP
1шт.
26
167320A1
BOLT,Spcl, M8 x 20mm
1шт.
29
KHR2787
CLAMP
1шт.
33
166297A1
GROMMET
2шт.
34
KRR1461
BRACKET
1шт.
35
166351A1
BOLT,Sems, M10 x 20mm
2шт.
48
150071A1
MOUNTING CLIP
380 mm
1шт.
49
167331A1
SENSOR
Water Temperature
1шт.
50
159171A1
CAP
1шт.
51
159172A1
CAP
1шт.
62
159179A1
PROTECTION CAP
1шт.
63
893-11006
LOCK WASHER,Ext Tooth, M6
1шт.
64
150496A1
MOUNTING CLIP
250 mm
2шт.
65
KRR1550
WIRE HARNESS
No Longer Available, Order KRR1616 Harness
1шт.
65
KRR1616
WIRE HARNESS
1шт.
66
150496A1
MOUNTING CLIP
250 mm
4шт.
67
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
1шт.
68
892-11010
LOCK WASHER,M10
1шт.
69
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
1шт.
70
893-11010
LOCK WASHER,Ext Tooth, M10
1шт.
71
167518A1
BOLT
1шт.
72
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
73
KAR0564
WIRE HARNESS
1шт.
74
166345A1
BOLT
2шт.
75
893-11008
LOCK WASHER,Ext Tooth, M8
2шт.
76
163658A1
THERMOSTATIC SWITCH
SWITCH - temperature, hydraulic oil
1шт.
77
159901A1
SEALING WASHER
15,8 x 27 x 2
1шт.
80
159599A1
PRESSURE SWITCH
Auxiliary/Swing
1шт.
80
KHR10790
PRESSURE SWITCH
Use If Switch Has A Pigtail Connector
1шт.
81
159899A1
PRESSURE SWITCH
Pressure, Upper
1шт.
81
KHR10800
PRESSURE SWITCH
Use If Switch Has A Pigtail Connector
1шт.
82
159900A1
PRESSURE SWITCH
Pressure, Travel (Back-up Alarm)
1шт.
82
KHR10810
PRESSURE SWITCH
SENSOR, Use If Switch Has A Pigtail Connector
1шт.
83
150496A1
MOUNTING CLIP
250 mm
1шт.
84
KRR1552
BREATHER
1шт.
85
159602A1
BOLT,Sems, Hex, M6 x 16mm
2шт.
86
KRR1576
WIRE HARNESS
1шт.
87
150496A1
MOUNTING CLIP
250 mm
1шт.
88
KHR2787
CLAMP
2шт.
Выбрано товаров: 49
