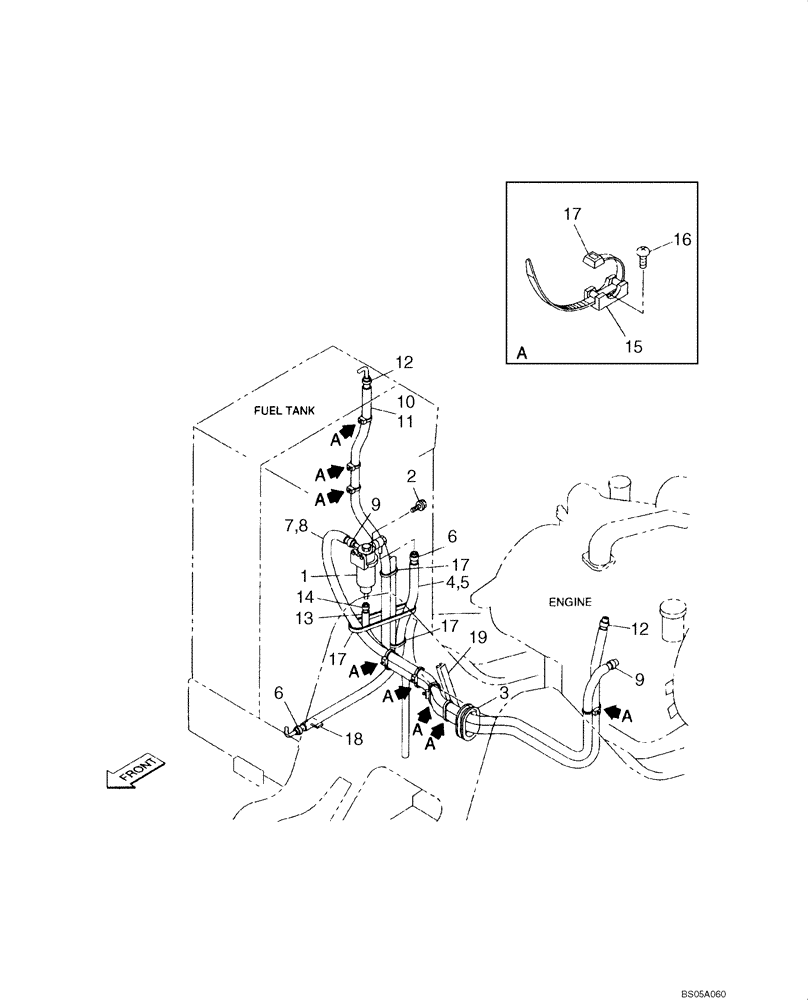

Запчасти Case CX225SR (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KRH1343

WATER TRAP

See Figure 03-03

1шт.

2

167182A1

BOLT,Sems, M8 x 25mm

2шт.

3

KRH1504

GROMMET

1шт.

4

KHH0487

FUEL HOSE

1шт.

5

158061A1

PLASTIC-RUBBER TUBE

1шт.

6

KHH0405

MOUNTING CLIP

2шт.

7

KHH0422

HOSE

2000 mm (78-3/4 in)

1шт.

8

KHR3052

PLASTIC-RUBBER TUBE

1шт.

9

KHH0405

MOUNTING CLIP

2шт.

10

KHH0501

FUEL HOSE

1шт.

11

158067A1

PLASTIC-RUBBER TUBE

1шт.

12

KHH0405

MOUNTING CLIP

2шт.

13

150340A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 500 mm Length

1шт.

14

150067A1

MOUNTING CLIP

1шт.

15

150860A1

COLLAR

8шт.

16

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

8шт.

17

150496A1

MOUNTING CLIP

1шт.

18

KRH1539

RUBBER PAD

1шт.

19

163733A1

SEAL PROTECTION

1шт.
