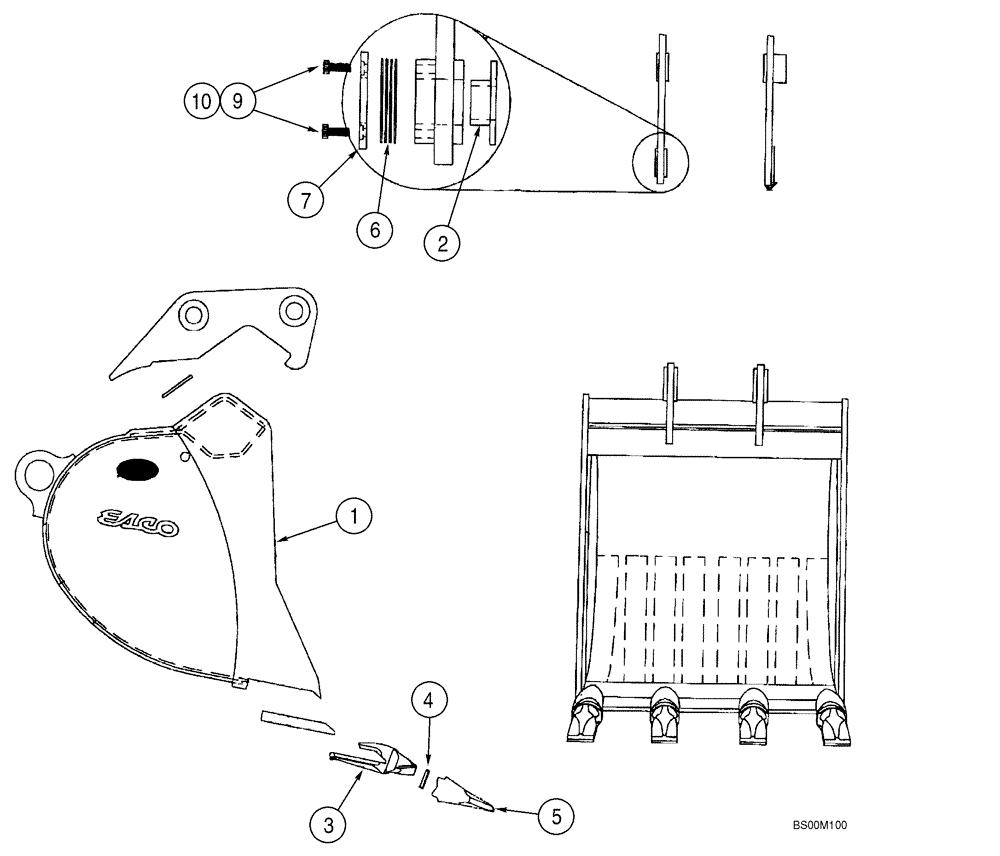

Запчасти Case CX225SR (09-38) - BUCKETS, ESCO - GENERAL PURPOSE BUCKETS (09) - CHASSIS

1

371469A1

BUCKET

0.50 cu m (0.65 cu yd); With 4 Teeth

1шт.

1

371470A1

BUCKET

066 cu m (0.87 cu yd); With 4 Teeth

1шт.

1

371471A1

BUCKET

0.82 cu m (1.09 cu yd); With 5 Teeth

1шт.

1

371472A1

BUCKET

0.99 cu m (1.31 cu yd); With 5 Teeth

1шт.

1

371473A1

BUCKET

1.16 cu m (1.53 cu yd); With 5 Teeth

1шт.

2

372027A1

ADAPTER

1шт.

3

233793A1

ADAPTER

Tooth

4-5шт.

4

233795A1

BUCKET TOOTH KEY

4-5шт.

5

233794A1

BUCKET TOOTH

4-5шт.

6

378630A1

SHIM

6шт.

7

378631A1

PLATE

1шт.

8

378632A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378642A1

KIT

Incl. 2, 6 - 10

1шт.
