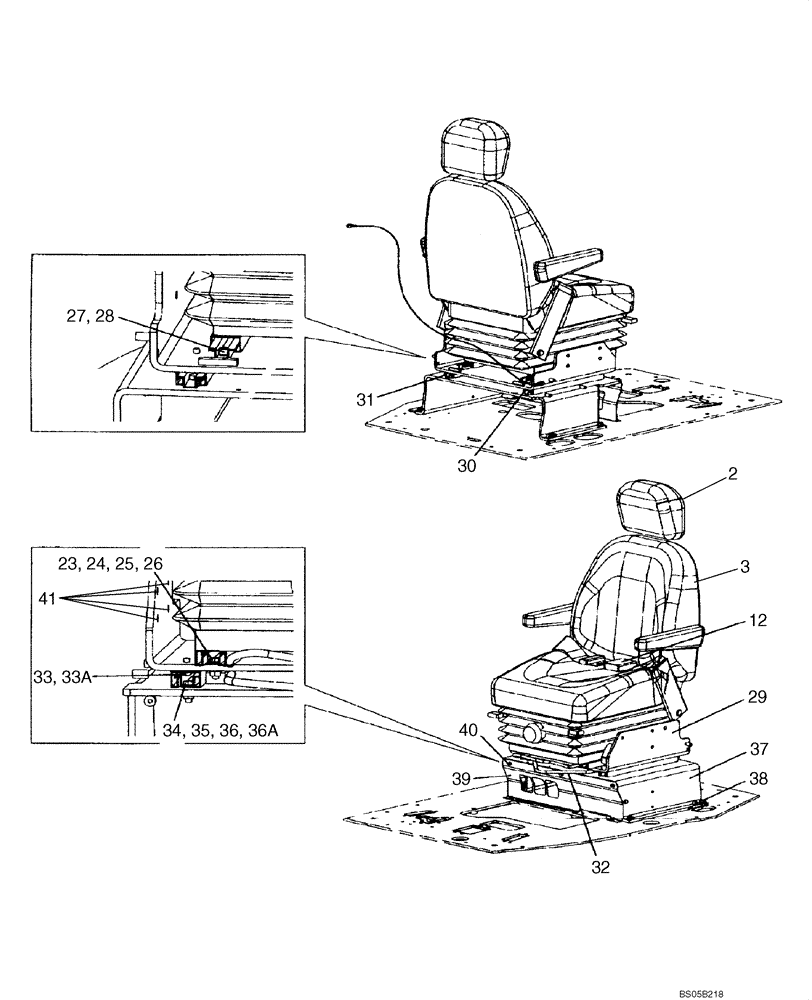

Запчасти Case CX225SR (09-15) - SEAT, MOUNTING - SEAT BELTS (09) - CHASSIS

2

166096A1

HEADREST, SEAT

HEADREST

1шт.

3

KHN3244

SEAT ASSY.

See Figure 09-16

1шт.

12

KHN3246

SAFETY BELT

1шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

25

892-11008

LOCK WASHER,8mm ID

2шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

27

108R008Y020R

HEX SOC SCREW

2шт.

28

892-11008

LOCK WASHER,8mm ID

2шт.

29

KHN3251

BRACKET

1шт.

30

KHN3158

SLIDE GUIDE

1шт.

31

KHN3162

SLIDE GUIDE

1шт.

32

KHN3309

LEVER

1шт.

33

108R008Y020R

HEX SOC SCREW

4шт.

33a

892-11008

LOCK WASHER,8mm ID

4шт.

34

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

35

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

36

892-11008

LOCK WASHER,8mm ID

4шт.

36a

153081A1

WASHER

4шт.

37

KHN3252

BRACKET

1шт.

38

166351A1

BOLT,Sems, M10 x 20mm

4шт.

39

KHN3254

COVER

1шт.

40

KHN2132

BOLT,Hex Flg Hd, M6 x 16

5шт.

41

166347A1

BOLT,Sems, M10 x 30mm

8шт.
