(09-12) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH AUXILIARY HYDRAULICS

Запчасти Case CX225SR (09-12) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH AUXILIARY HYDRAULICS (09) - CHASSIS

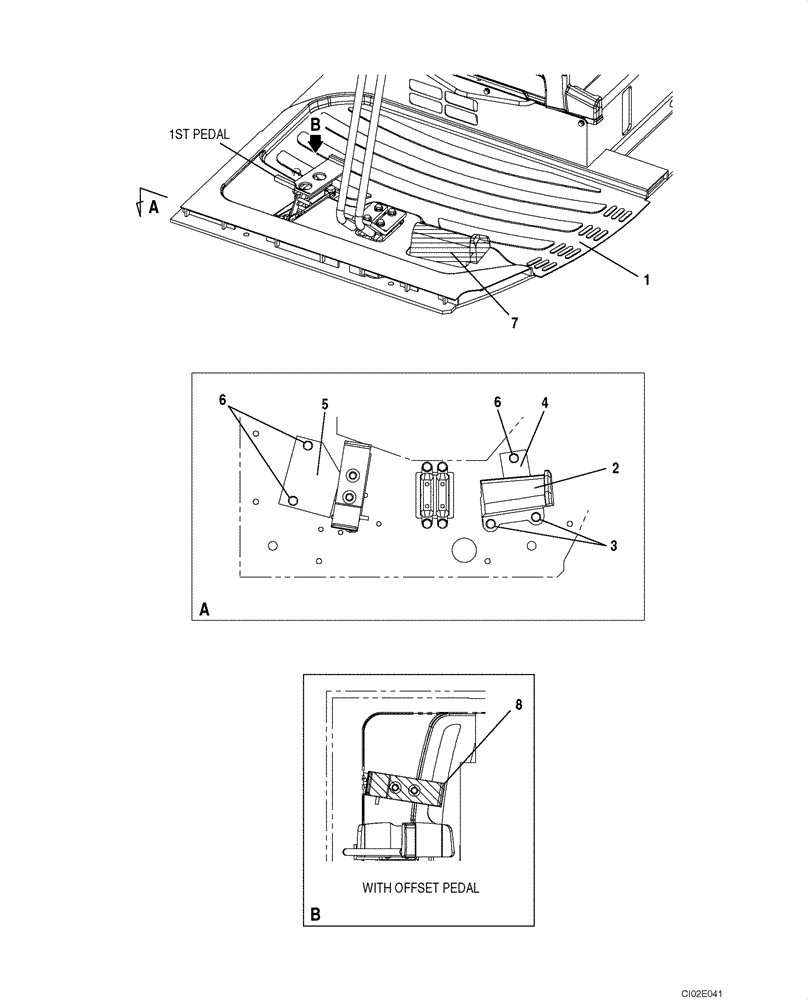

Схема запчастей Case CX225SR - (09-12) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH AUXILIARY HYDRAULICS (09) - CHASSIS
1
6
2
5
4
6
8
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2119

FLOOR MAT

1шт.

2

KHJ1636

FOOT REST

Left

1шт.

3

166052A1

BOLT

2шт.

4

KHJ2296

COVER

1шт.

5

KHJ2571

COVER

1шт.

6

166346A1

BOLT,Sems, M10

3шт.

7

KHP1400

COVER

1шт.

8

163782A1

SKIRT COVER

1шт.
