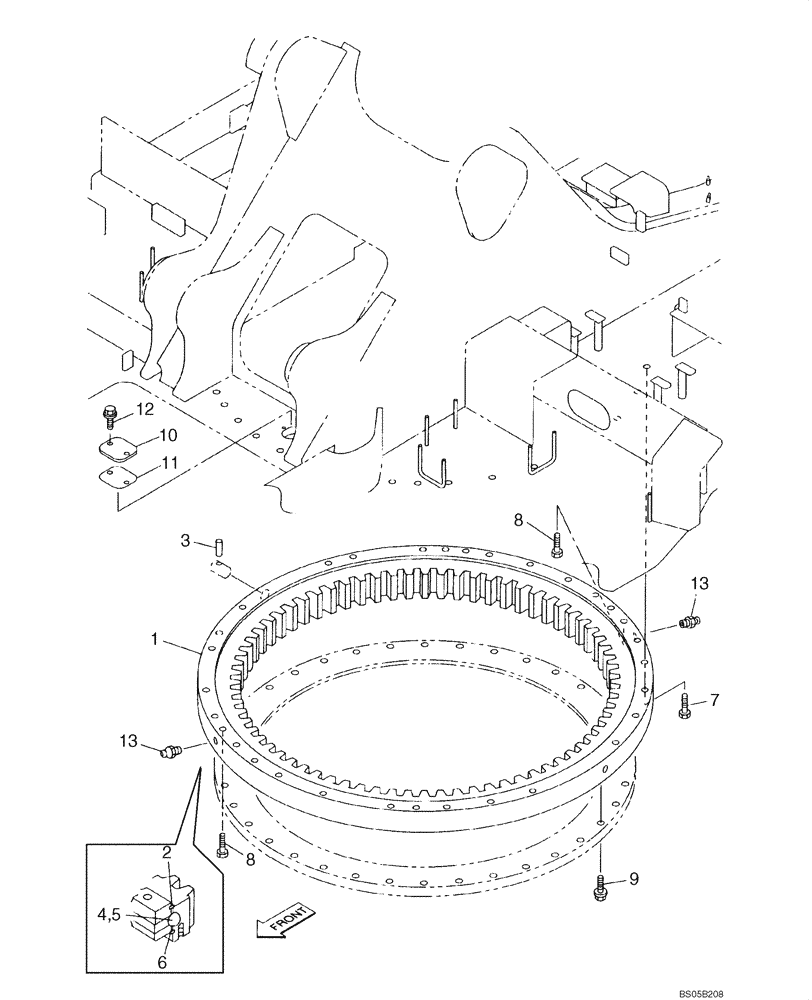

Запчасти Case CX225SR (09-01) - TURNTABLE BEARING (09) - CHASSIS

1

KRB10200

BEARING

Bearing, Turntable, Incl. 2 - 6

1шт.

2

KRB1273

SEALING RING

1шт.

3

160433A1

DOWEL

1шт.

4

150980A1

BEARING, BALL,28.57mm OD

120шт.

5

163865A1

SPACER

120шт.

6

KRB1274

SEALING RING

1шт.

7

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

30шт.

8

165900A1

BOLT,M20 x 100mm, Cl 10.9

M20 x 100; 10.9

2шт.

9

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

M20 x 65; 10.9

36шт.

10

KAB0604

COVER

1шт.

11

KAB0623

PACKING

1шт.

12

166347A1

BOLT,Sems, M10 x 30mm

2шт.

13

153630A1

LUBE NIPPLE

2шт.
