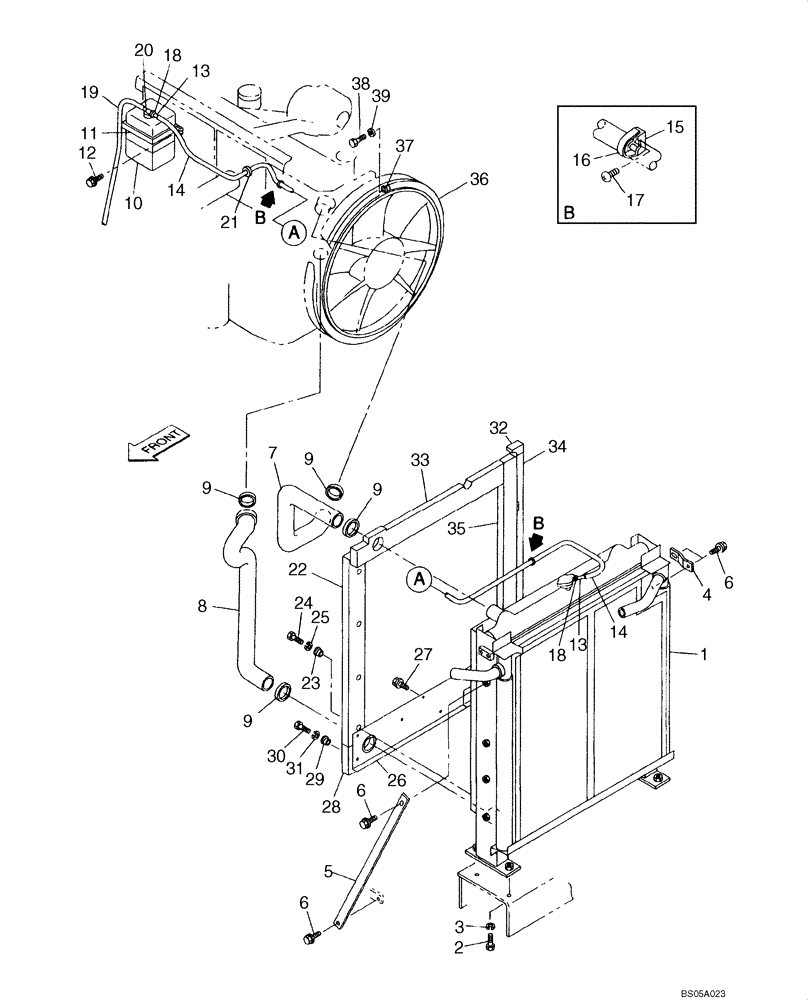

Запчасти Case CX225SR (02-04) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

Radiator, See Figure 02-05

1шт.

2

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

17 x 32 x 4,5 mm

4шт.

4

KRH1484

STAY

1шт.

5

KRH1483

STAY

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

7

KRH1547

RADIATOR HOSE

1шт.

8

KRH1482

RADIATOR HOSE

1шт.

9

165793A1

COLLAR

4шт.

10

KHH0260

TANK

1шт.

11

KRH1270

HOLDER

1шт.

12

166052A1

BOLT

2шт.

13

150740A1

HOSE

1шт.

14

157138A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1600 mm Length

1шт.

15

150860A1

COLLAR

2шт.

16

150496A1

MOUNTING CLIP

2шт.

17

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

18

165951A1

CLAMP

2шт.

19

150074A1

HOSE

1400 mm, Cut From 157487A1

1шт.

20

165952A1

MOUNTING CLIP

1шт.

21

159363A1

GROMMET

1шт.

22

KRH1532

SEAL

1шт.

23

KHH0358

RETAINER

4шт.

24

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

26

KRH1548

SEAL RETAINER

1шт.

27

166345A1

BOLT

3шт.

28

KRH1549

SEAL

1шт.

29

KHH0358

RETAINER

4шт.

30

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

32

KRH1492

SEAL

1шт.

33

KRH1530

SEAL

1шт.

34

KRH1488

SEAL

1шт.

35

KRH1531

SEAL

1шт.

36

KRH1375

GASKET

1шт.

37

KHH12390

MOUNTING CLIP

If Used, Replaces KRH1376

1шт.

37.5

KHH12410

COLLAR CLAMP

Replaces KRH1376, Not Shown

1шт.

38

KRH1377

BOLT,Spcl

No Longer Used, Order KHH12410

1шт.

39

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

No Longer Used, Order KHH12410

1шт.
