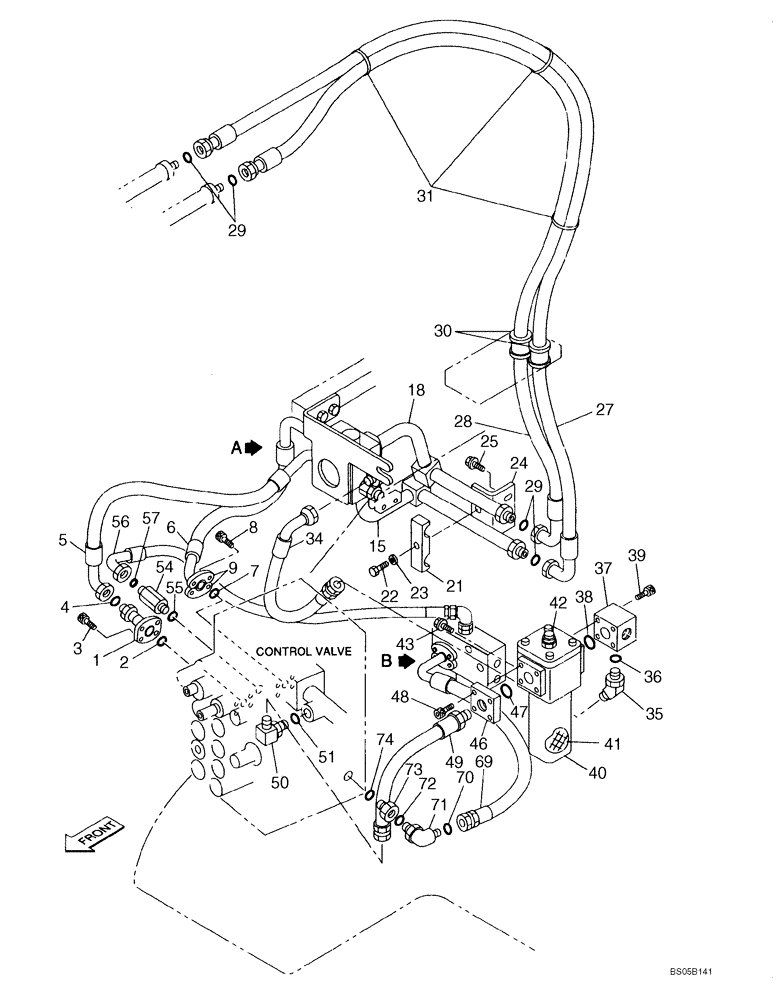

Запчасти Case CX225SR (08-39) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

1

KRJ6832

PIPE FITTING

1шт.

2

154548A1

O-RING

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KRJ6838

HYDRAULIC HOSE

670 mm ( 26-1/2 in)

1шт.

6

KRJ6839

HYDRAULIC HOSE,840.00 mm

1шт.

7

155211A1

O-RING

1шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

9

153459A1

FLANGE

2шт.

15

KRJ6833

TUBE ASSY.

1шт.

18

KRJ6834

TUBE ASSY.

1шт.

21

KRJ6930

PIPE CLAMP

1шт.

22

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

23

150811A1

WASHER

M12

1шт.

23

KRJ6967

BREATHER

1шт.

25

166052A1

BOLT

2шт.

27

KRJ7005

HYDRAULIC HOSE,2900.00 mm

1шт.

28

KRJ7004

HYDRAULIC HOSE,2800.00 mm

1шт.

29

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

30

KHJ2373

HOSE CLAMP

2шт.

31

150071A1

MOUNTING CLIP

1шт.

34

KLJ0552

HOSE ASSY.

1шт.

35

157587A1

ELBOW

Incl. 36

1шт.

36

154523A1

O-RING

1шт.

37

KRJ6835

MANIFOLD

1шт.

38

154625A1

O-RING

1шт.

39

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

1шт.

40

159704A1

FILTER ASSY

Incl. 41, 42

1шт.

41

159705A1

HYDRAULIC OIL FILTER

1шт.

42

159706A1

INDICATOR

1шт.

43

166052A1

BOLT

Without Option

4шт.

46

KRJ5954

FLANGE

1шт.

47

154625A1

O-RING

1шт.

48

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

49

KRJ6477

HYDRAULIC HOSE,25.40 mm ID x 900.00 mm

1шт.

50

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 51

1шт.

51

154523A1

O-RING

1шт.

54

KHJ1495

ADAPTER

Incl. 55

1шт.

55

154503A1

O-RING

1шт.

56

KRJ6836

HYDRAULIC HOSE,640.00 mm

1шт.

57

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

69

KRJ6837

HYDRAULIC HOSE,670.00 mm

1шт.

70

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

71

KHJ1804

ELBOW

Incl. 72

1шт.

72

154503A1

O-RING

1шт.

73

159198A1

ADAPTER

Incl. 74

1шт.

74

154503A1

O-RING

1шт.
