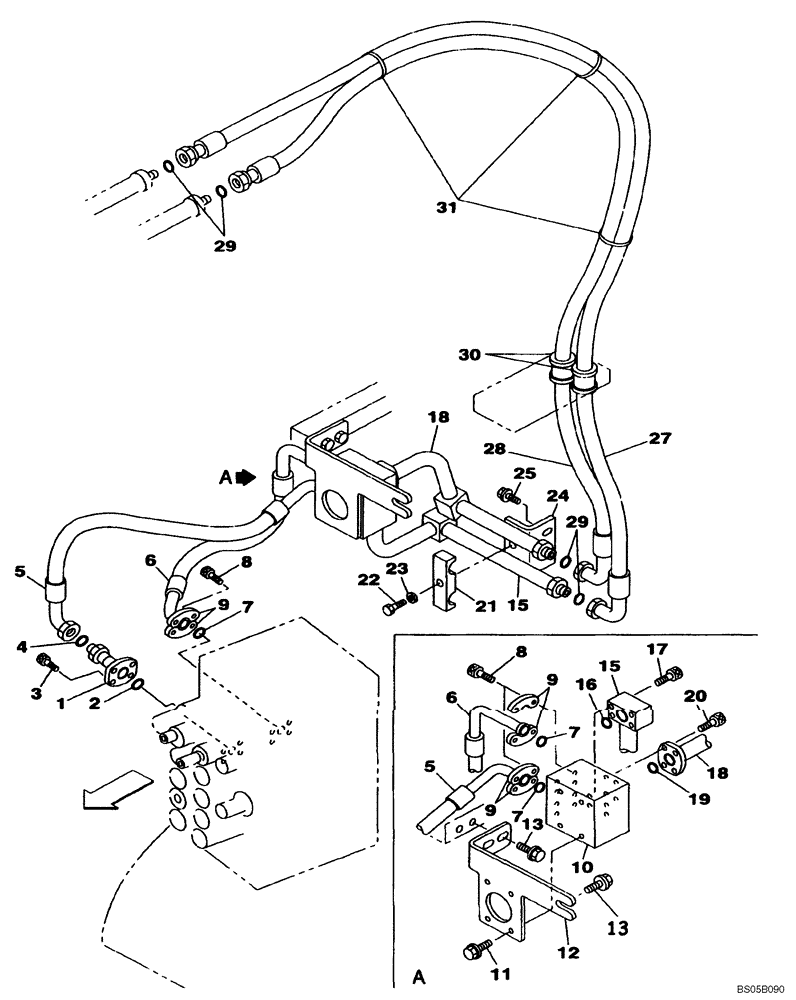

Запчасти Case CX225SR (08-37) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (PIN DAC0822107 -) (08) - HYDRAULICS

1

KRJ6832

PIPE FITTING

1шт.

2

154548A1

O-RING

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KRJ6838

HYDRAULIC HOSE

1шт.

6

KRJ6839

HYDRAULIC HOSE,840.00 mm

1шт.

7

155211A1

O-RING

3шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

12шт.

9

153459A1

FLANGE

6шт.

10

KRJ6849

MANIFOLD

1шт.

11

166052A1

BOLT

4шт.

12

KRJ6843

BRACKET

1шт.

13

166352A1

BOLT

3шт.

15

KRJ7143

HYD TUBE

1шт.

16

154548A1

O-RING

1шт.

17

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

18

KRJ7144

HYD TUBE

1шт.

19

154548A1

O-RING

1шт.

20

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

21

KRJ6930

PIPE CLAMP

1шт.

22

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

23

150811A1

WASHER

1шт.

24

KRJ6967

BREATHER

1шт.

25

166052A1

BOLT

2шт.

27

KRJ7134

HYDRAULIC HOSE,2550.00 mm

1шт.

28

KRJ7137

HYDRAULIC HOSE,2500.00 mm

1шт.

29

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

30

KHJ2679

HOSE CLAMP

2шт.

31

150071A1

MOUNTING CLIP

1шт.
