(08-36) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (PIN DAC0822101 - DAC0822106)

Запчасти Case CX225SR (08-36) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (PIN DAC0822101 - DAC0822106) (08) - HYDRAULICS

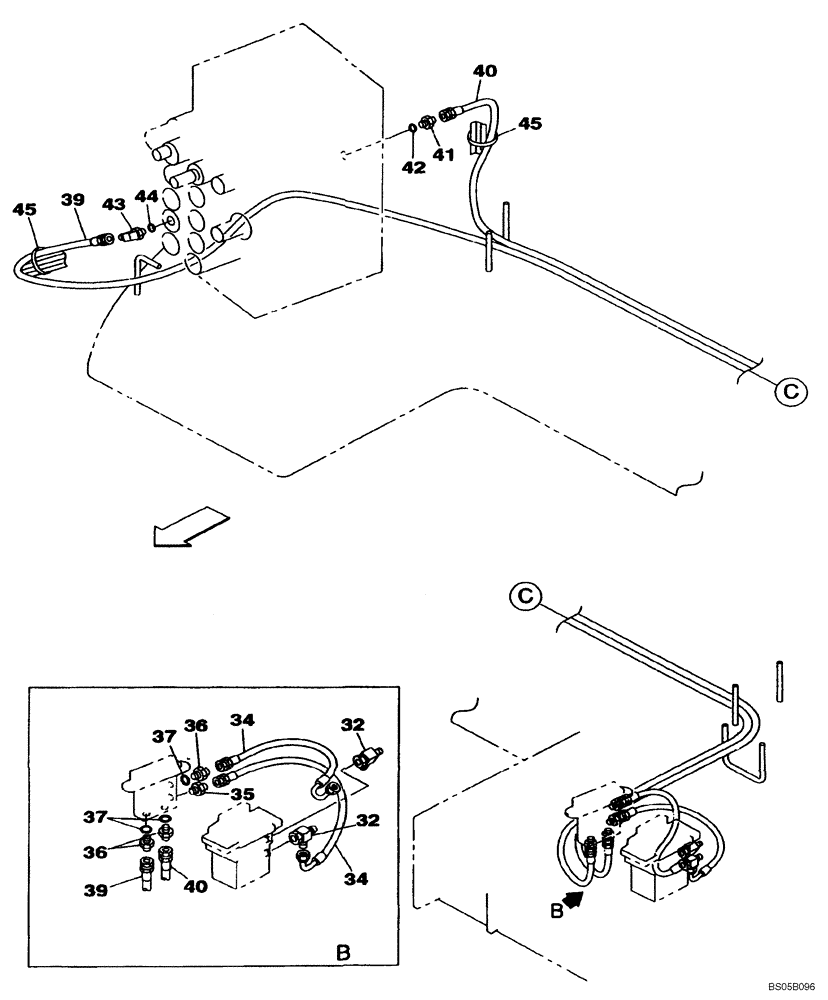

Схема запчастей Case CX225SR - (08-36) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (PIN DAC0822101 - DAC0822106) (08) - HYDRAULICS
34
40
37
39
45
44
32
43
45
35
37
34
32
39
41
42
36
40
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

32

KHJ2130

TEE

2шт.

34

KHJ2084

HOSE

2шт.

35

161841A1

HYD CONNECTOR

Incl. 35A

1шт.

35a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 37

3шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

39

KHJ2313

HOSE

1шт.

40

KHJ2074

HOSE

1шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

150496A1

MOUNTING CLIP

1шт.
