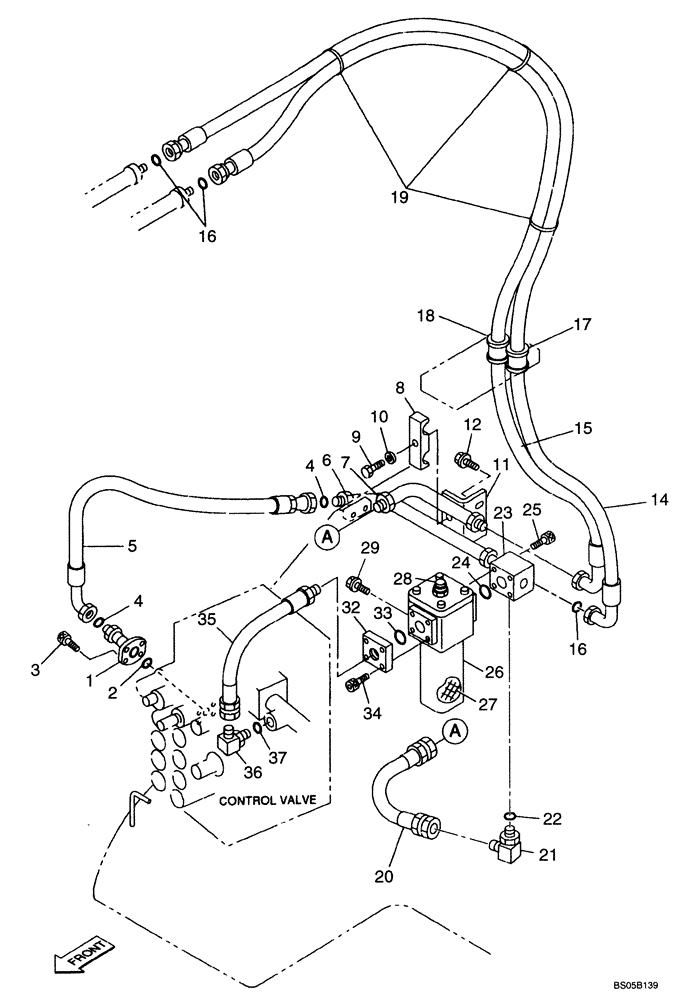

Запчасти Case CX225SR (08-33) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

1

KRJ6832

PIPE FITTING

1шт.

2

154548A1

O-RING

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

KRJ6969

HYDRAULIC HOSE,850.00 mm

1шт.

6

KRJ6965

HYD TUBE

1шт.

7

KRJ6966

HYD TUBE

1шт.

8

KRJ6930

PIPE CLAMP

1шт.

9

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

10

150811A1

WASHER

M12

1шт.

11

KRJ6967

BREATHER

1шт.

12

166052A1

BOLT

2шт.

14

KRJ7005

HYDRAULIC HOSE,2900.00 mm

1шт.

15

KRJ6968

HYDRAULIC HOSE,2800.00 mm

1шт.

16

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

17

KHJ2373

HOSE CLAMP

1шт.

18

KHJ2379

HOSE CLAMP

1шт.

19

150071A1

MOUNTING CLIP

1шт.

20

KAJ3851

HYDRAULIC HOSE

1шт.

21

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 22

1шт.

22

154523A1

O-RING

1шт.

23

KRJ6835

MANIFOLD

1шт.

24

154625A1

O-RING

1шт.

25

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

26

159704A1

FILTER ASSY

Incl. 27, 28

1шт.

27

159705A1

HYDRAULIC OIL FILTER

1шт.

28

159706A1

INDICATOR

1шт.

29

166052A1

BOLT

4шт.

32

KRJ5954

FLANGE

1шт.

33

154625A1

O-RING

1шт.

34

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

35

KRJ6477

HYDRAULIC HOSE,25.40 mm ID x 900.00 mm

1шт.

36

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 37

1шт.

37

154523A1

O-RING

1шт.
