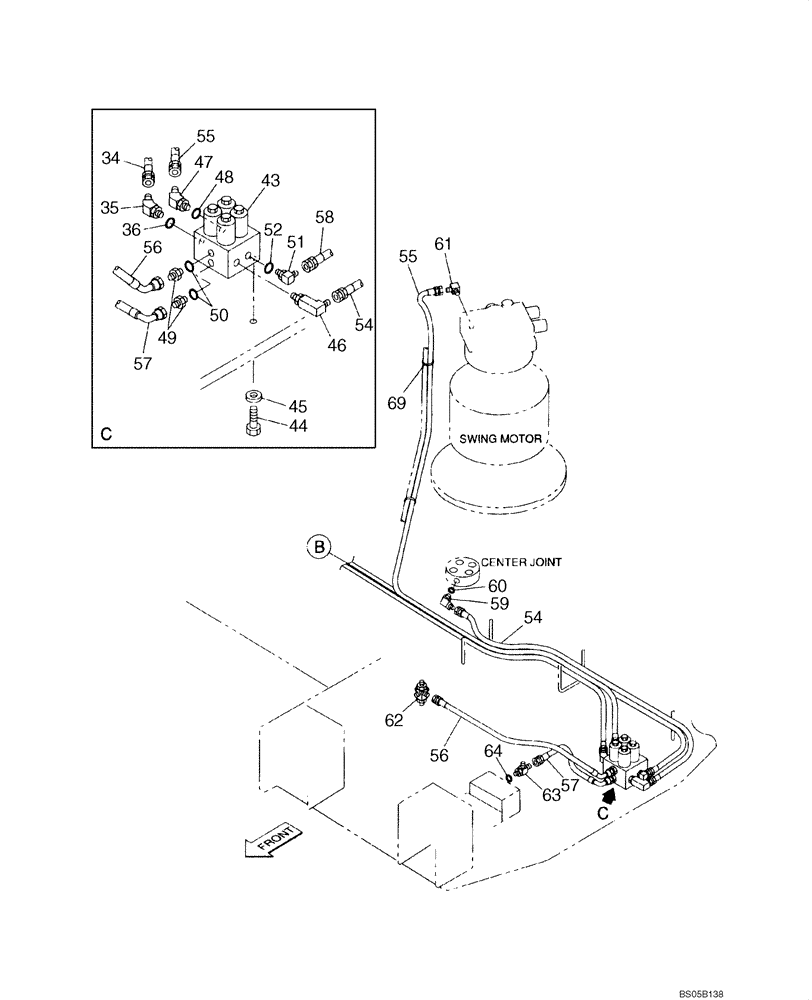

Запчасти Case CX225SR (08-32) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

34

KHJ2178

HOSE

3700 mm (145-3/4 in)

1шт.

35

157584A1

ELBOW

Incl. 36

1шт.

36

154475A1

O-RING

1шт.

43

KHJ15450

SOLENOID VALVE

; Replaces KRJ6304, See Figure 08-72

1шт.

44

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

45

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

46

KHJ1178

ELBOW

1шт.

47

150933A1

ELBOW

Incl. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 50

2шт.

50

154475A1

O-RING

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

KHJ2057

HOSE

1шт.

55

KHJ2070

HOSE

1шт.

56

KHJ2329

HOSE

1шт.

57

KHJ2104

HOSE

1шт.

58

KHJ2081

HOSE

3200 mm (126 in)

1шт.

59

150933A1

ELBOW

Incl. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

153596A1

ADAPTER

1шт.

62

KHJ1967

ADAPTER

1шт.

63

162827A1

TEE

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

150496A1

MOUNTING CLIP

1шт.
