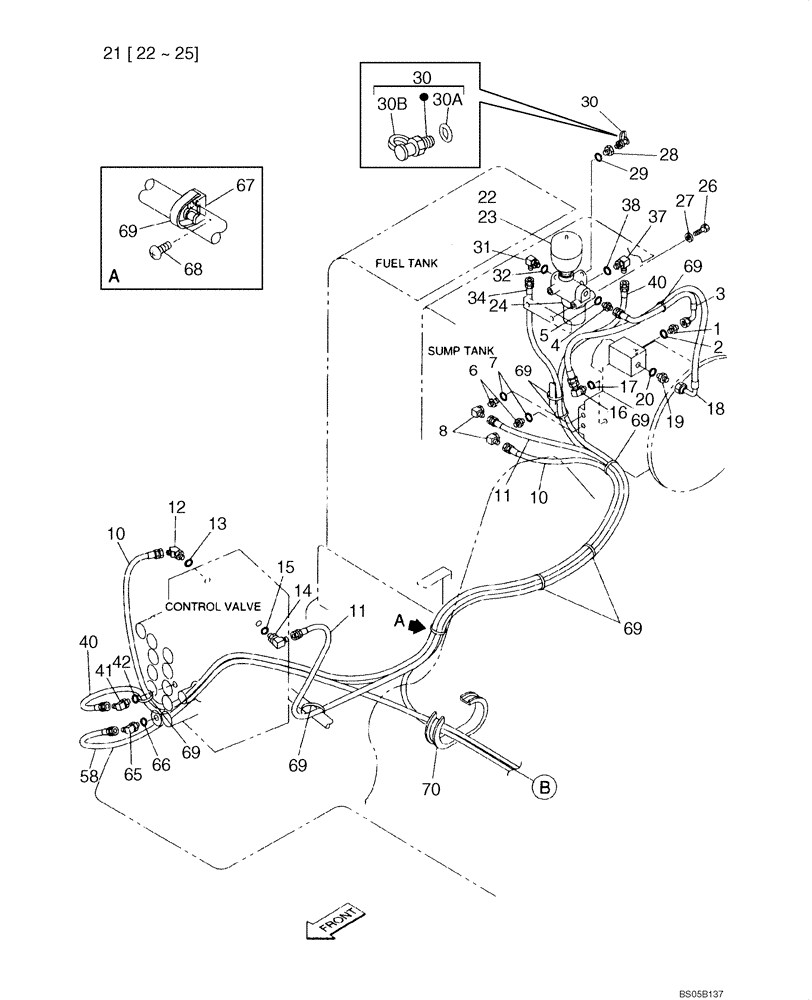

Запчасти Case CX225SR (08-31) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

161084A1

ADAPTER

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

4

161084A1

ADAPTER

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

163814A1

ELBOW

2шт.

10

157851A1

HOSE

2850 mm (112-1/4 in)

1шт.

11

159007A1

HOSE

2300 mm (90-5/8 in)

1шт.

12

150933A1

ELBOW

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 17

1шт.

17

154487A1

O-RING

1шт.

18

KSJ2569

HOSE ASSY.,12.70 mm ID x 850.00 mm

1шт.

19

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 20

1шт.

20

154487A1

O-RING

1шт.

21

KHJ2357

ACCUMULATOR

Incl. 22, 23, 24, 25; Prior to P.I.N. DAC251331

1шт.

21

KHJ14870

ACCUMULATOR

Incl. 22, 23, 24A, 25, 25A; P.I.N. DAC251331 And After; Not Illustrated

1шт.

22

KHJ2359

ACCUMULATOR

Incl. 23

1шт.

23

154487A1

O-RING

1шт.

24

KHJ1474

FILTER ASSY

Incl. 25

1шт.

24a

KHJ14880

MANIFOLD

Incl. 25, 25A; Not Illustrated

1шт.

25

KHJ1493

HYDRAULIC OIL FILTER

1шт.

25a

154641A1

O-RING

Not Illustrated

1шт.

26

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

27

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

28

KHJ2620

BUSHING

Replaces 151136A1, Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

1541849C1

COUPLING

Incl. 30A, 30B

1шт.

30b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30c

H434163

DUST CAP

1шт.

31

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 32

1шт.

32

154475A1

O-RING

1шт.

34

KHJ2178

HOSE

3700 mm (145-3/4 in)

1шт.

37

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

KHJ2172

HOSE

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

KHJ2081

HOSE

3200 mm (126 in)

1шт.

65

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

150860A1

COLLAR

1шт.

68

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

69

150496A1

MOUNTING CLIP

250 mm

8шт.

70

162522A1

RUBBER BLOCK

1шт.
