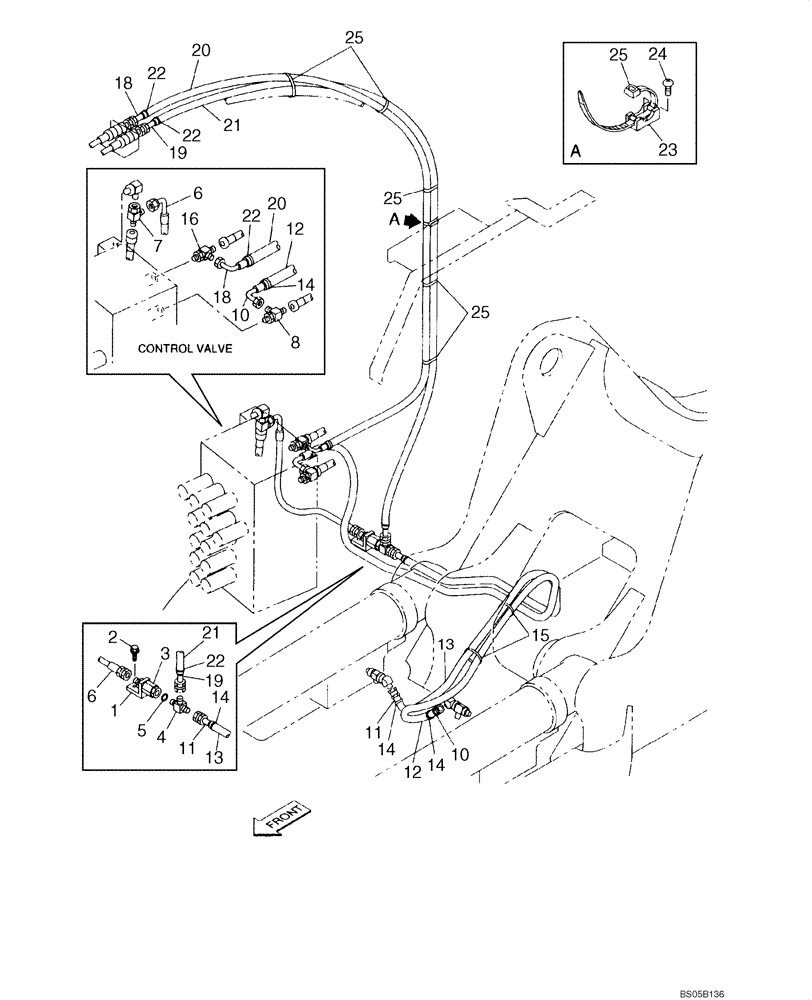

Запчасти Case CX225SR (08-30) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KRJ23030

BRACKET

Replaces KRJ7040

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

1шт.

3

167853A1

ADAPTER

1шт.

4

167517A1

TEE

Incl. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KHJ2196

HOSE

820 mm (32-3/8 in)

1шт.

7

KHJ2130

TEE

1шт.

8

KHJ2234

TEE

1шт.

10

KHJ1571

HYDRAULIC HOSE,9.52 mm ID x 2050.00 mm

1шт.

11

167868A1

HYDRAULIC HOSE,1450.00 mm

1шт.

12

150776A1

PLASTIC-RUBBER TUBE

1шт.

13

157693A1

PLASTIC-RUBBER TUBE

1шт.

14

150067A1

MOUNTING CLIP

150 mm

4шт.

15

150498A1

MOUNTING CLIP

300 mm

1шт.

16

KHJ2234

TEE

1шт.

18

KHJ2561

HYDRAULIC HOSE

1шт.

19

KSJ2127

HYDRAULIC HOSE,3500.00 mm

1шт.

20

151175A1

PLASTIC-RUBBER TUBE

1шт.

21

KRH1396

PLASTIC-RUBBER TUBE

3400 mm (133-7/8 in)

1шт.

22

150067A1

MOUNTING CLIP

150 mm

4шт.

23

150860A1

COLLAR

1шт.

24

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

25

150498A1

MOUNTING CLIP

250 mm

1шт.
