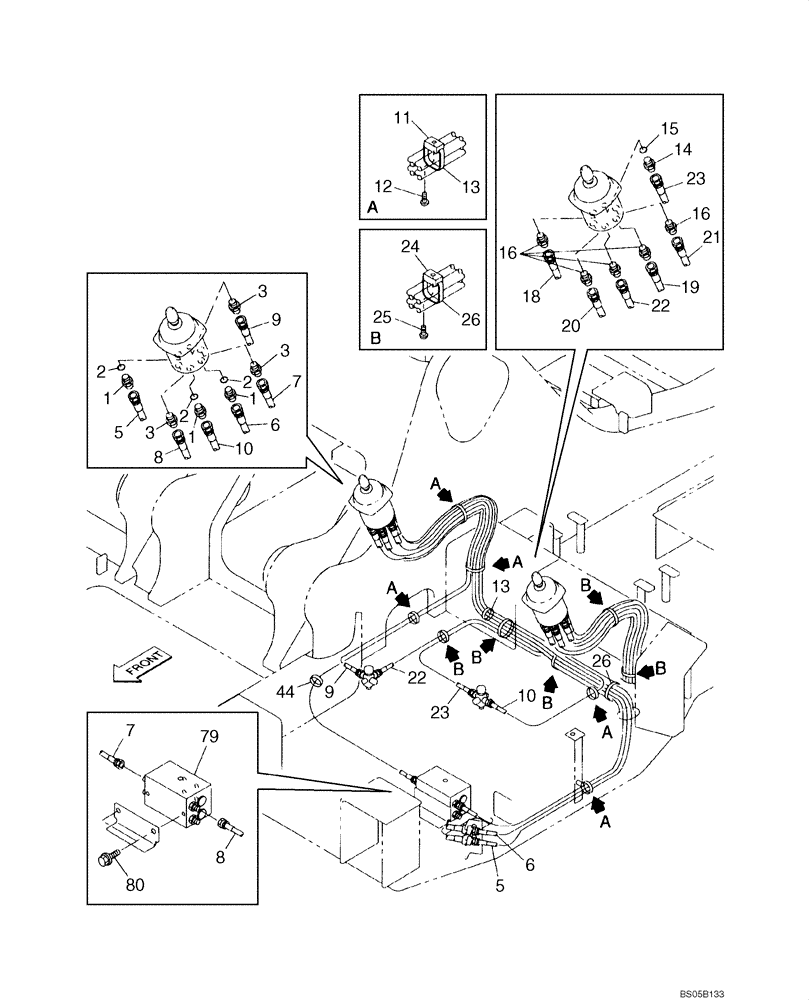

Запчасти Case CX225SR (08-23) - PILOT CONTROL LINES, ATTACHMENT - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2478

HOSE

2300 mm (90-5/8 in)

1шт.

6

KHJ2478

HOSE

2300 mm (90-5/8 in)

1шт.

7

KHJ2336

HOSE

1800 mm (70-7/8 in)

1шт.

8

KHJ2478

HOSE

2300 mm (90-5/8 in)

1шт.

9

KHJ2182

HOSE

1450 mm (57-1/8 in)

1шт.

10

KHJ2333

HOSE

1920 mm (75-5/8 in)

1шт.

11

150860A1

COLLAR

5шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

13

150498A1

MOUNTING CLIP

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

161841A1

HYD CONNECTOR

5шт.

18

KHJ2387

HOSE

1550 mm (61 in)

1шт.

19

KHJ2387

HOSE

1550 mm (61 in)

1шт.

20

KHJ2387

HOSE

1550 mm (61 in)

1шт.

21

KHJ2387

HOSE

1550 mm (61 in)

1шт.

22

KHJ2335

HOSE

1780 mm (70-1/8 in)

1шт.

23

KHJ2336

HOSE

1800 mm (70-7/8 in)

1шт.

24

150860A1

COLLAR

5шт.

25

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

26

150498A1

MOUNTING CLIP

250mm

1шт.

44

150498A1

MOUNTING CLIP

250mm

1шт.

79

KRJ6912

VALVE

See Figure 08-63

1шт.

80

166052A1

BOLT

2шт.
