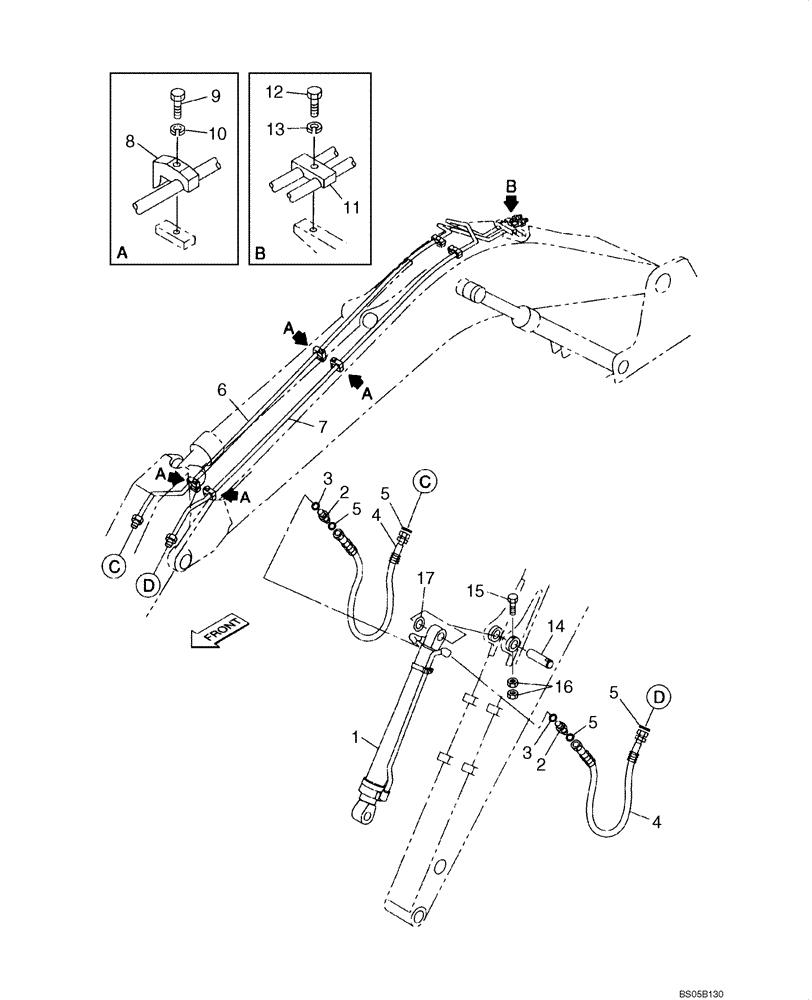

Запчасти Case CX225SR (08-20) - HYDRAULICS - BUCKET, 2,40 METER (7 FT 10 IN) ARM (08) - HYDRAULICS

1

KRV3237

BUCKET CYLINDER

Bucket, See Figure 08-79

1шт.

1

KRV3237R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR (NORTH AMERICA), Bucket, 2,40 METER (7 FT 10 IN) ARM

1шт.

1

KRV3237C

CORE-HYD CYLINDER

Return Number

1шт.

2

KHJ1348

ADAPTER

Incl. 3

2шт.

3

154503A1

O-RING

1шт.

4

KRV2779

HYDRAULIC HOSE,19mm ID x 1300mm L

2шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

6

KRV3320

HYD TUBE

1шт.

7

KRV3559

HYD TUBE

1шт.

8

151486A1

CLAMP BRACKET

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

183-112VR

SPRING WASHER

4шт.

11

152085A1

COLLAR

1шт.

12

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

13

183-112VR

SPRING WASHER

1шт.

14

160446A1

PIN,75mm OD x 241mm L

1шт.

15

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

1шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

2шт.

17

160452A1

SHIM

1,30 mm (0,051 in)

1шт.
