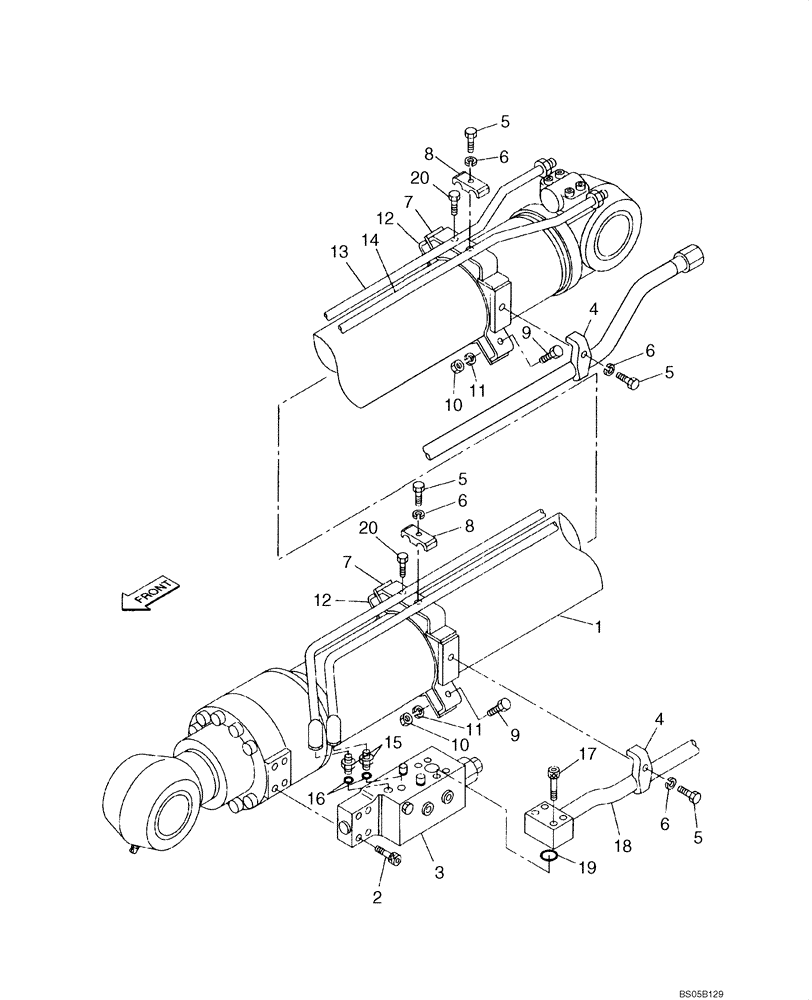

Запчасти Case CX225SR (08-19) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KRV3239

HYDRAULIC CYLINDER

See Figure 08-79

1шт.

2

108R010Y050R

BOLT

M10 x 50

4шт.

3

KRV3725

VALVE

See Figure 08-69; Replaces KRV3378

1шт.

4

151486A1

CLAMP BRACKET

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

183-112VR

SPRING WASHER

4шт.

7

KRV3201

CLAMP

2шт.

8

168551A1

COLLAR

2шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

10

162R010VR

NUT

4шт.

11

892-11010

LOCK WASHER,M10

4шт.

12

KRV2861

CLAMP

2шт.

13

KRV3370

HYD TUBE

1шт.

14

KRV3371

HYD TUBE

1шт.

15

152747A1

ADAPTER

Incl. 16

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

18

KRV3372

HYD TUBE

1шт.

19

155210A1

O-RING

1шт.

20

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.
