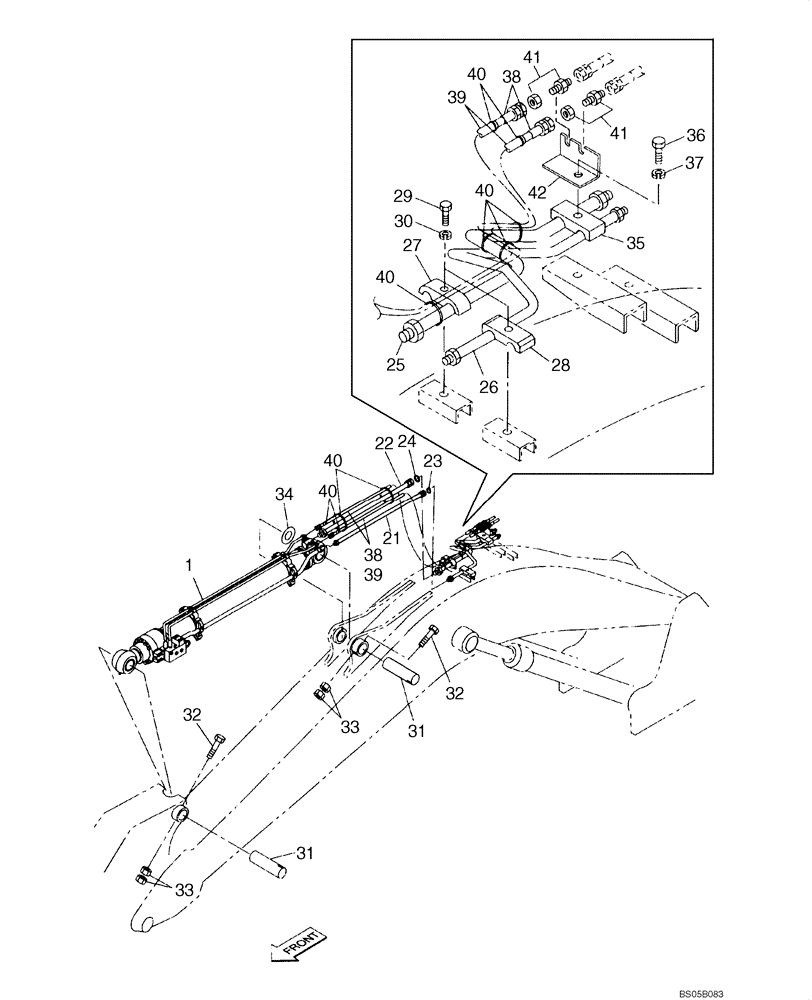

Запчасти Case CX225SR (08-18) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KRV3239

HYDRAULIC CYLINDER

Arm, Models With Load Hold, See Figure 08-78

1шт.

21

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

22

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

23

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

24

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

25

KRV3556

HYD TUBE

1шт.

26

KRV3557

HYD TUBE

1шт.

27

151489A1

CLAMP

1шт.

28

159742A1

COLLAR

1шт.

29

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

30

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

2шт.

31

159738A1

PIN,80mm OD x 273mm L

2шт.

32

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

33

829-11420

NUT,M20 x 1.5, Cl 10

4шт.

34

159741A1

SHIM

1шт.

35

153186A1

COLLAR

1шт.

36

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

37

183-112VR

SPRING WASHER

1шт.

38

KMJ2441

HOSE ASSY.

2шт.

39

KHV0490

PLASTIC-RUBBER TUBE

2000 mm (78-3/4 in)

2шт.

40

150496A1

MOUNTING CLIP

1шт.

41

162826A1

ADAPTER

2шт.

42

KRV3506

BREATHER

1шт.
