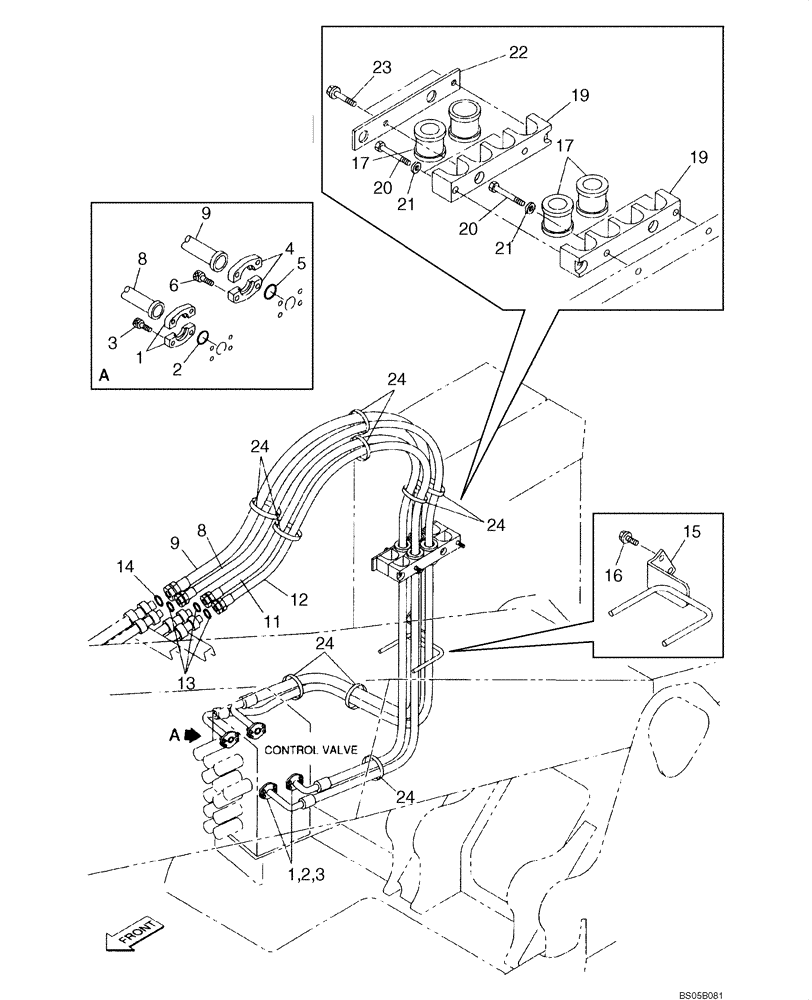

Запчасти Case CX225SR (08-16) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

153458A1

FLANGE

6шт.

2

155210A1

O-RING

3шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

12шт.

4

153459A1

FLANGE

2шт.

5

155211A1

O-RING

1шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

8

KRJ6951

HYDRAULIC HOSE,3650.00 mm

1шт.

9

KRJ6952

HYDRAULIC HOSE,3450.00 mm

1шт.

11

KRJ6953

HOSE

3150 mm (124-1/8 in)

1шт.

12

KRJ6954

HYDRAULIC HOSE,3300.00 mm

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

3шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

15

KRJ7047

BRACKET

1шт.

16

166052A1

BOLT

2шт.

17

KHJ2379

HOSE CLAMP

3шт.

19

KHJ2445

CLAMP

2шт.

20

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

21

150409A1

WASHER

10,5 x 21 x 3,2 mm

4шт.

22

KHJ2446

BREATHER

1шт.

23

166052A1

BOLT

2шт.

24

150071A1

MOUNTING CLIP

1шт.
