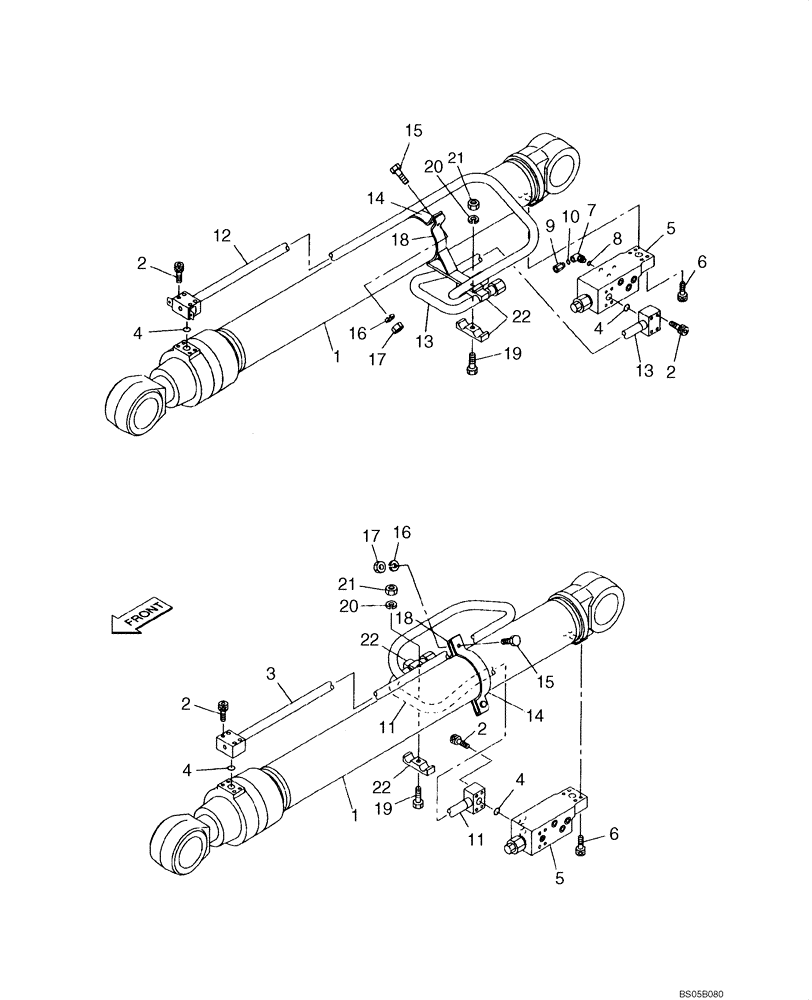

Запчасти Case CX225SR (08-15) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KRV3485

HYDRAULIC CYLINDER

See Figure 08-76

2шт.

1

KRV3485R

REMAN-HYD CYLINDER

2шт.

1

KRV3485C

CORE-HYD CYLINDER

Return Number

2шт.

2

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

16шт.

3

KBV1885

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

155210A1

O-RING

4шт.

5

KRV3725

VALVE

See Figure 08-69; Replaces KRV3378

2шт.

6

108R010Y050R

BOLT

M10 x 50

8шт.

7

166573A1

ELBOW

Incl. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ1584

UNION

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KRV3376

HYD TUBE

1шт.

12

KBV1884

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

13

KRV3377

HYD TUBE

1шт.

14

MFV5008

CLAMP

2шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

16

150409A1

WASHER

Replaces 892-11010

4шт.

17

162R010VR

NUT

4шт.

18

KBV1883

MOUNTING CLIP

2шт.

19

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

20

150811A1

WASHER

Replaces 183-112VR

2шт.

21

829-1412

NUT,M12, Cl 10.9

2шт.

22

161960A1

COLLAR

4шт.
