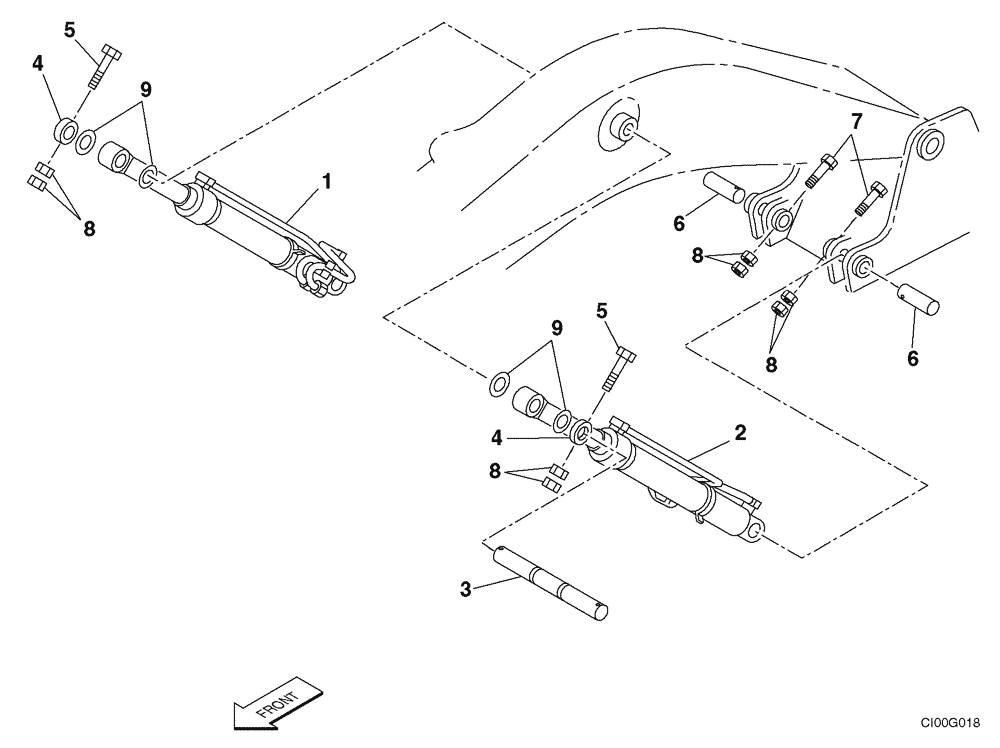

Запчасти Case CX225SR (08-13) - HYDRAULICS - BOOM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KRV3483

HYDRAULIC CYLINDER

Boom, Right Hand; See Figure 08-74

1шт.

1

KRV3483R

CORE-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR (NORTH AMERICA), Boom, Right Hand, MODELS WITHOUT LOAD HOLD

1шт.

1

KRV3483C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV3484

HYDRAULIC CYLINDER

Boom, Left Hand; See Figure 08-75

1шт.

2

KRV3484R

REMAN-HYD CYLINDER

CX225SR CRAWLER EXCAVATOR (NORTH AMERICA), Boom, Left Hand, MODELS WITHOUT LOAD HOLD

1шт.

2

KRV3484C

CORE-HYD CYLINDER

Return Number

1шт.

3

KRV3502

PIN

1шт.

4

159440A1

COLLAR

2шт.

5

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

6

159446A1

PIN,90mm OD x 261mm L

2шт.

7

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

8

829-11420

NUT,M20 x 1.5, Cl 10

8шт.

9

159458A1

ADJUSTING PLATE

1шт.
