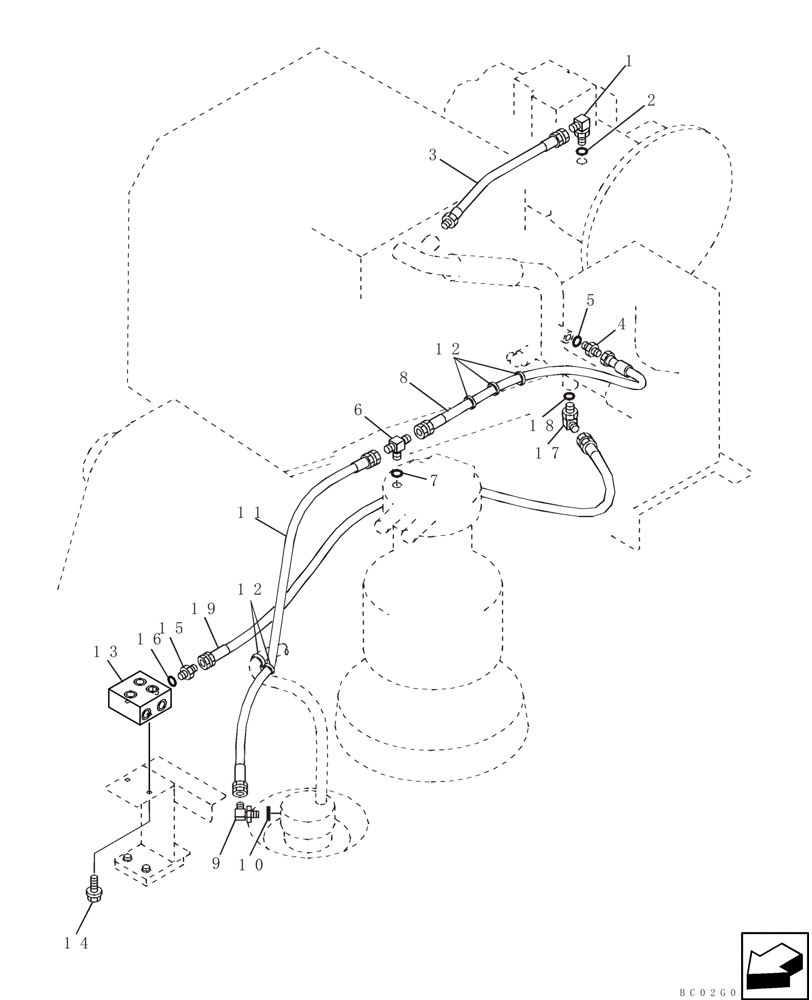

Запчасти Case CX210N (08-08) - HYDRAULICS - DRAIN LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KBJ2809

HYDRAULIC HOSE,19.00 mm ID x 450.00 mm

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KHJ1157

TEE

Incl. 7

1шт.

7

154475A1

O-RING

1шт.

8

KRJ5970

HYDRAULIC HOSE,12.70 mm ID x 1050.00 mm

1шт.

9

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

163805A1

HOSE ASSY.

1шт.

12

150071A1

MOUNTING CLIP

5шт.

13

KRJ6438

MANIFOLD VALVE

1шт.

14

166351A1

BOLT,Sems, M10 x 20mm

2шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

2шт.

16

154487A1

O-RING

1шт.

17

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 18

1шт.

18

154487A1

O-RING

1шт.

19

KRJ6431

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.
