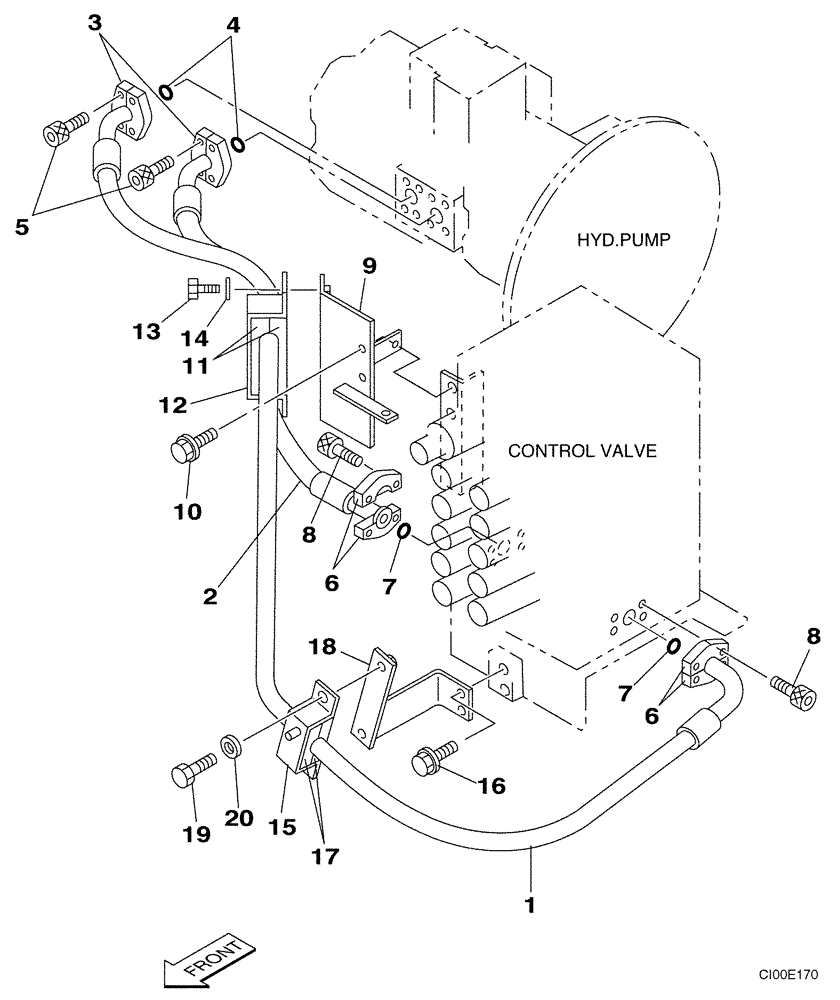

Запчасти Case CX210N (08-04) - HYDRAULICS - CONTROL VALVE SUPPLY (08) - HYDRAULICS

1

KRJ6449

HOSE ASSY.,19mm ID x 1900mm L

1шт.

2

KRJ6450

HYDRAULIC HOSE,19.00 mm ID x 960.00 mm

1шт.

3

152598A1

HALF-COLLAR

Split

4шт.

4

155210A1

O-RING

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

6

150561A1

FLANGE

Split

4шт.

7

155211A1

O-RING

2шт.

8

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

8шт.

9

KRJ6085

BRACKET

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

11

159841A1

COLLAR

2шт.

12

KRJ5765

BRACKET

1шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

14

150811A1

WASHER

M12

2шт.

15

KRJ5795

BRACKET

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

17

162248A1

COLLAR

2шт.

18

KRJ6086

BRACKET

1шт.

19

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

20

150811A1

WASHER

M12

2шт.
