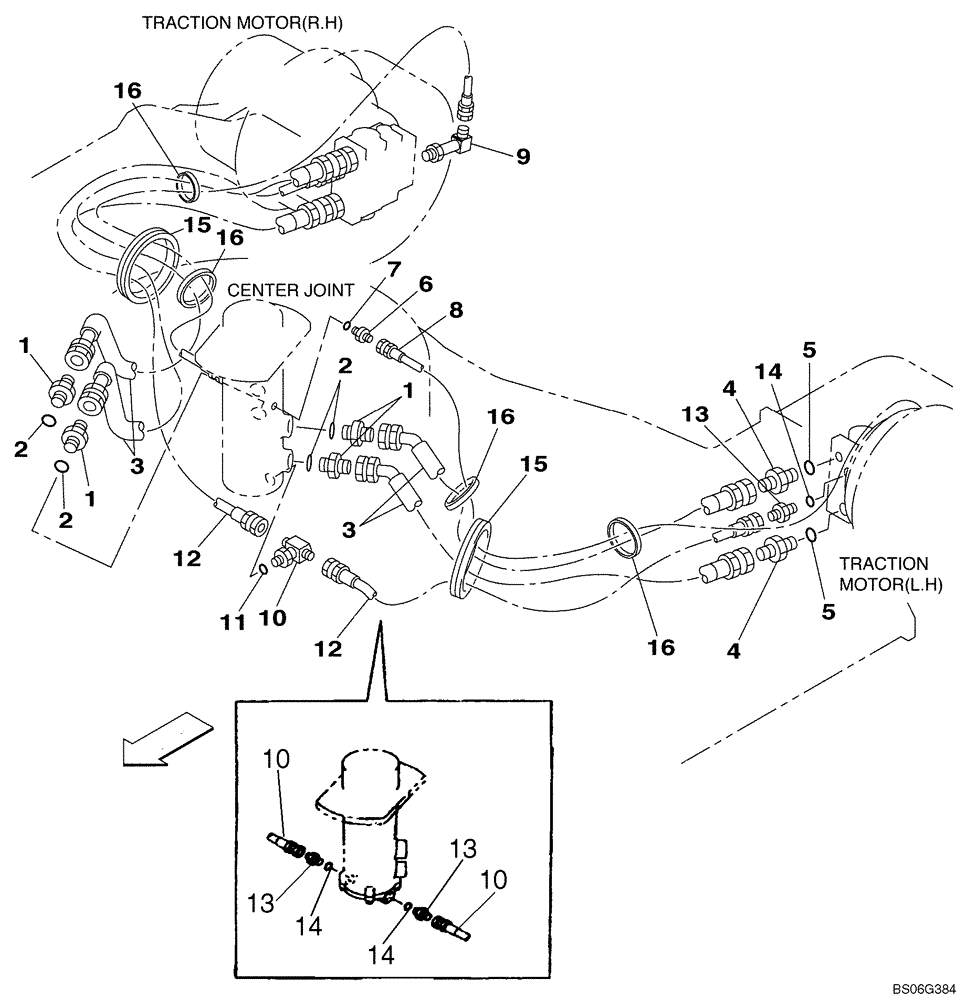

Запчасти Case CX210N (06-05) - HYDRAULICS - TRACK DRIVE (Mar 2 2011 9:20AM) (06) - POWER TRAIN

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 2

4шт.

2

154503A1

O-RING

1шт.

3

MMA1005

HOSE ASSY.,19.00 mm ID x 2000.00 mm

4шт.

4

169040A1

ADAPTER

Incl. 5

4шт.

5

154523A1

O-RING

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

152270A1

HOSE,6.3mm ID x 2600mm L

2шт.

9

KHJ1178

ELBOW

2шт.

10

169309A1

TEE

Incl. 11; P.I.N. DAC0721787 - DAC0825130

1шт.

11

154487A1

O-RING

1шт.

12

KNJ2848

HYDRAULIC HOSE,12.70 mm ID x 2100.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 14; 4 Used P.I.N. DAC0825131 -

2-4шт.

14

154487A1

O-RING

1шт.

15

160414A1

RUBBER BLOCK

2шт.

16

150071A1

MOUNTING CLIP

4шт.
