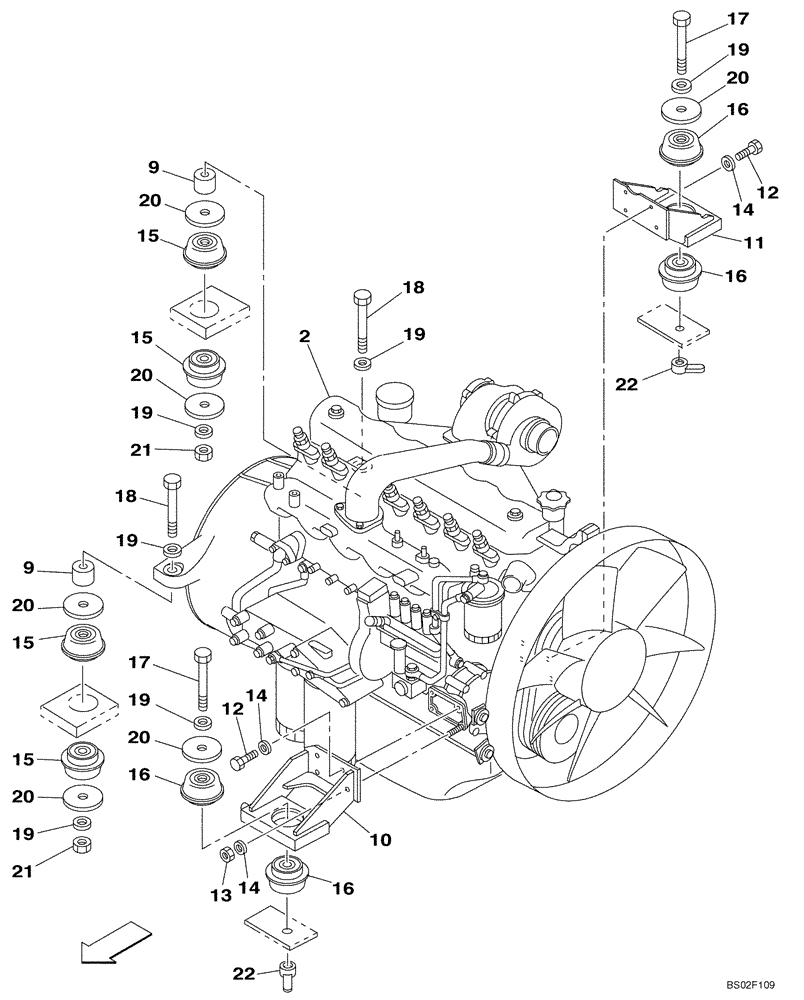

Запчасти Case CX210N (02-01) - ENGINE MOUNTING ( - P.I.N. DAC0721963) (02) - ENGINE

2

KRH1473

MOTOR

BB-6BG1T; See Figure(s) 02 -06 - 02 -21, 03 -03 - 03 -08C, 04-01 - 04 -04; Prior to P.I.N. DAC0721963

1шт.

2

KRH1642EC

CORE-ENGINE

Environmental Core, For N.A. Only

1шт.

9

167984A1

SPACER

2шт.

10

KRH1341

ENGINE MOUNT

1шт.

11

KHH0485

ENGINE MOUNT

1шт.

12

159657A1

BOLT,High Strength, M10

M10 x 20; 10.9

7шт.

13

153604A1

NUT

1шт.

14

150409A1

WASHER

10,5 x 21 x 3,2 mm

8шт.

15

KRH1225

SILENTBLOC

4шт.

16

KRH1226

SILENTBLOC

4шт.

17

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

2шт.

18

828-16210

BOLT,Hex, M16 x 2 x 210mm, Cl 10.9

2шт.

19

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

6шт.

20

KRH1256

PLATE

6шт.

21

829-1416

NUT,M16, Cl 10

2шт.

22

KRH1251

SPECIAL NUT

M16

2шт.
