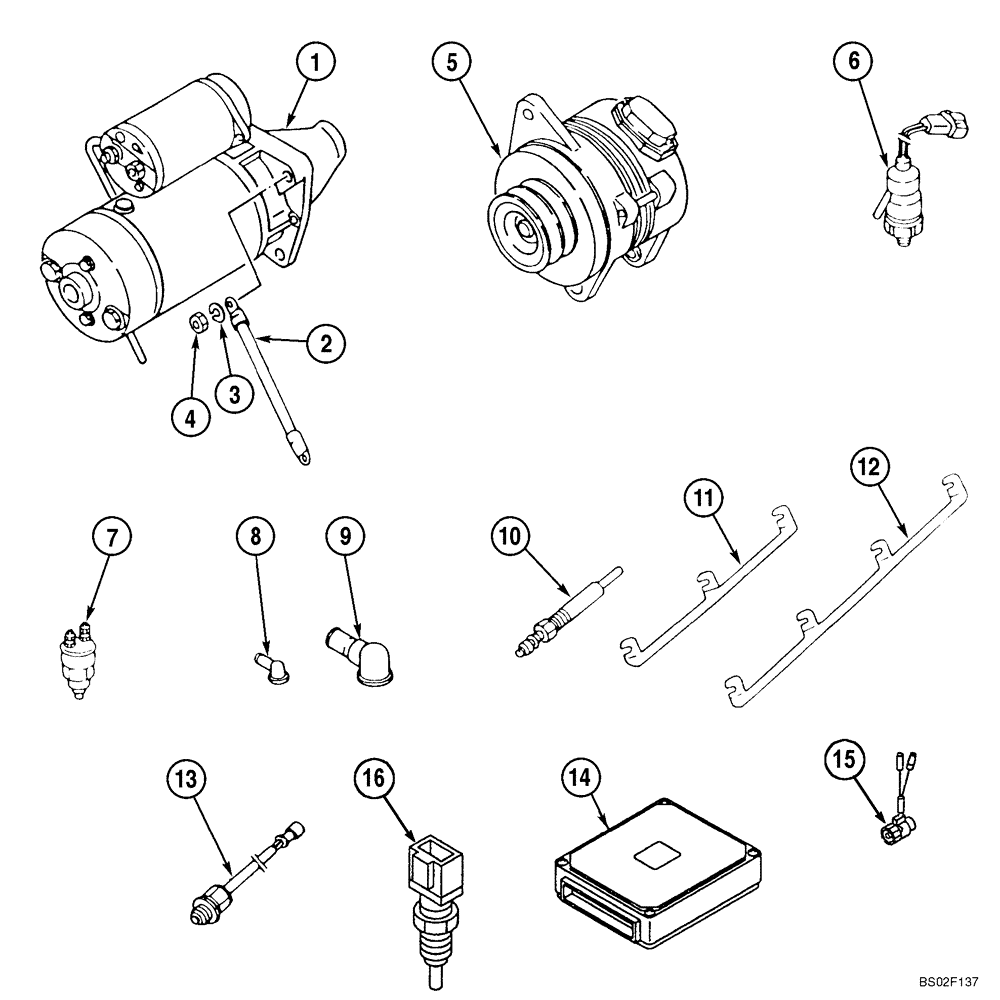

Запчасти Case CX210N (04-03) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Starter; See Figure 04-01 - 04-01B

1шт.

2

289982A1

CABLE

1шт.

3

289784A1

WASHER

3шт.

4

289996A1

NUT

3шт.

5

REF

INSTRUCTION

Alternator; See Figure 04-02 - 04-02C

1шт.

6

288883A1

PRESSURE SWITCH

Oil Pressure Sensor

1шт.

7

289737A1

SENSOR

1шт.

8

289983A1

CAP

2шт.

8

289984A1

CAP

4шт.

9

168003A1

DUST CAP

3шт.

10

288874A1

GLOW PLUG

6шт.

11

289564A1

CONNECTOR, ELEC

CONNECTOR

1шт.

12

289565A1

CONNECTOR, ELEC

CONNECTOR

1шт.

13

289391A1

SENSOR

1шт.

14

87456833

ECU

Replaces 288652A1; Service Only Applied For Unit With Label 6BG1TABFB

1шт.

14

87399952

ECU

Service Only Applied For Unit With Label 6BG1TABFE

1шт.

15

288846A1

SENSOR

Engine Speed Sensor

1шт.

16

288817A1

SENSOR

Water Temperature

1шт.
