(03-06) - FUEL INJECTION PUMP AND DRIVE

Запчасти Case CX210N (03-06) - FUEL INJECTION PUMP AND DRIVE (03) - FUEL SYSTEM

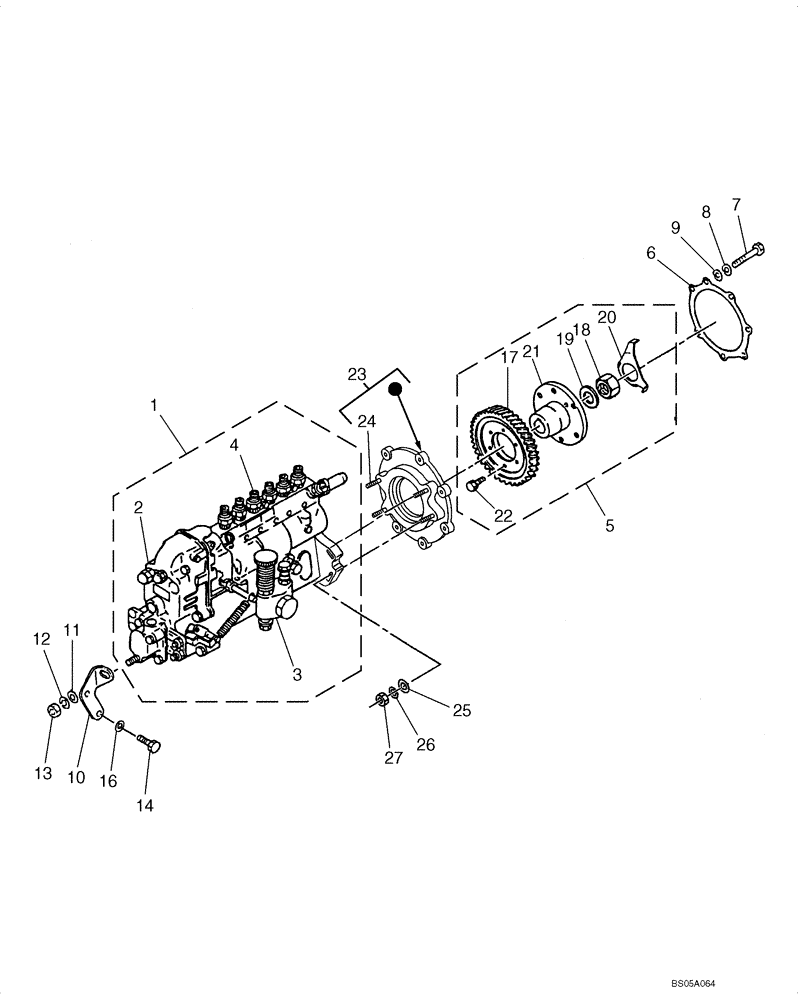

Схема запчастей Case CX210N - (03-06) - FUEL INJECTION PUMP AND DRIVE (03) - FUEL SYSTEM
10
5
17
3
6
27
1
26
16
22
4
18
12
13
11
2
20
14
8
24
19
21
9
7
25
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

288866A1

PUMP, FUEL INJECTION

PUMP, INJECTION Incl. 437863A1, 437858A1 (Ref 2, 3) and 437843A1 Housing (Figure 03-08); No Longer Available, Order 87430496

1шт.

1

87430496R

REMAN-INJECTION PUMP

CX210N ~DAC0721850 & ASN DAC211851, Reman for New P/N 288866A1

1шт.

1

87430496C

CORE-INJECTION PUMP

Return Number

1шт.

1

87430496

PUMP, FUEL INJECTION

PUMP, INJECTION Incl. 87448761, 87418202 (Ref 2, 3) and 437843A1 Housing (Figure 03-09)

1шт.

1

87430496R

REMAN-INJECTION PUMP

CX210N ~DAC0721850 & ASN DAC211851

1шт.

1

87430496C

CORE-INJECTION PUMP

Return Number

1шт.

2

437863A1

GOVERNOR

See Figure 03-08

1шт.

2

87448761

GOVERNOR

See Figure 03-11

1шт.

3

437858A1

FEED PUMP

See Figure 03-8A

1шт.

3

87418202

FEED PUMP

See Figure 03-13

1шт.

4

437843A1

HOUSING

1шт.

5

288647A1

LARGE HOSE

HOSE,LARGE Incl. 17 - 22

1шт.

6

289661A1

PACKING

1шт.

7

288976A1

BOLT

7шт.

8

289782A1

LOCK WASHER

7шт.

9

289787A1

WASHER

7шт.

10

289566A1

BRACKET

1шт.

11

289792A1

WASHER

1шт.

12

289783A1

LOCK WASHER

1шт.

13

289776A1

NUT

1шт.

14

289023A1

BOLT

2шт.

15

289783A1

LOCK WASHER

2шт.

16

289792A1

WASHER

2шт.

17

288742A1

PINION

1шт.

18

288765A1

NUT

1шт.

19

288766A1

WASHER

1шт.

20

288767A1

PLATE

1шт.

21

288807A1

RING, COUPLING

1шт.

22

289680A1

BOLT

1шт.

22a

288849A1

BOLT

Not Illustrated

2шт.

23

289819A1

BOLT

1шт.

24

289761A1

STUD

4шт.

25

289795A1

WASHER

M10

4шт.

26

289786A1

LOCK WASHER

W10

4шт.

27

289541A1

NUT

M10

4шт.
