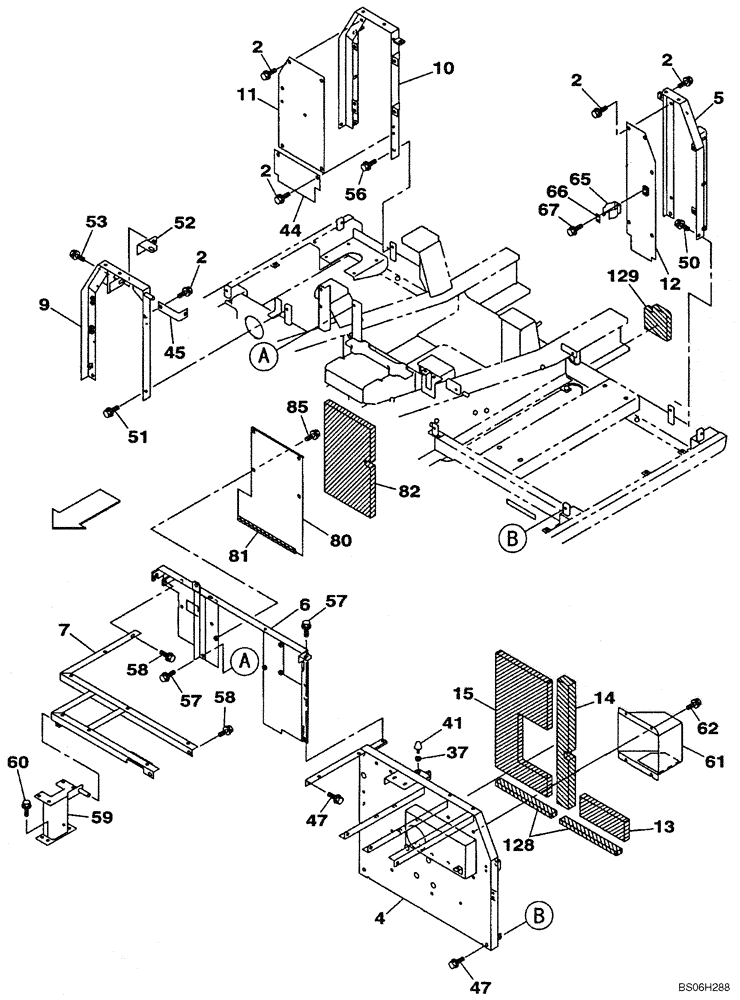

Запчасти Case CX210N (09-05A) - FRAMES, COVERS - INSULATION, P.I.N. DAC0721631 AND AFTER (09) - CHASSIS

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

16шт.

4

KRN3061

SUPPORT ASSY.

1шт.

5

KRN2491

SUPPORT ASSY.

1шт.

6

KRN2828

SUPPORT ASSY.

1шт.

7

KRN2493

SUPPORT ASSY.

1шт.

9

KRN2494

SUPPORT ASSY.

1шт.

10

KRN2496

SUPPORT ASSY.

1шт.

11

KRN2307

COVER

1шт.

12

KRN2564

COVER

1шт.

13

KRN2567

FOAM INSULATION

1шт.

15

KRN3063

SEAL

1шт.

15

KRN3064

INSULATOR

1шт.

37

KBH0446

NUT

M10 x 1.25

2шт.

41

151108A1

STOP

1шт.

44

KRN2308

COVER

1шт.

45

KRN2565

SUPPORT

1шт.

47

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

50

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

52

KNN1346

BRACKET

1шт.

53

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

56

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

57

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

58

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

59

KRN3118

BRACKET

1шт.

60

166352A1

BOLT

M12 x 30

4шт.

61

KRN3062

COVER

1шт.

62

166052A1

BOLT

M10 x 25

4шт.

65

152772A1

HOLDER

1шт.

66

KHN3548

PLATE

1шт.

67

166345A1

BOLT

M8 x 16

2шт.

80

KRN2840

COVER

1шт.

81

HKH0047

GASKET

L=400 mm

1шт.

82

KRN2841

INSULATOR

1шт.

85

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

128

KRN2572

SEAL

2шт.

129

KRN2570

SEAL

1шт.

147

KRN12040

FOAM INSULATION

1шт.

148

KRN12050

FOAM INSULATION

1шт.

149

KRN12060

FOAM INSULATION

1шт.

150

KRN12070

FOAM INSULATION

1шт.

151

KRN12080

FOAM INSULATION

1шт.

152

KRN12090

FOAM INSULATION

1шт.
