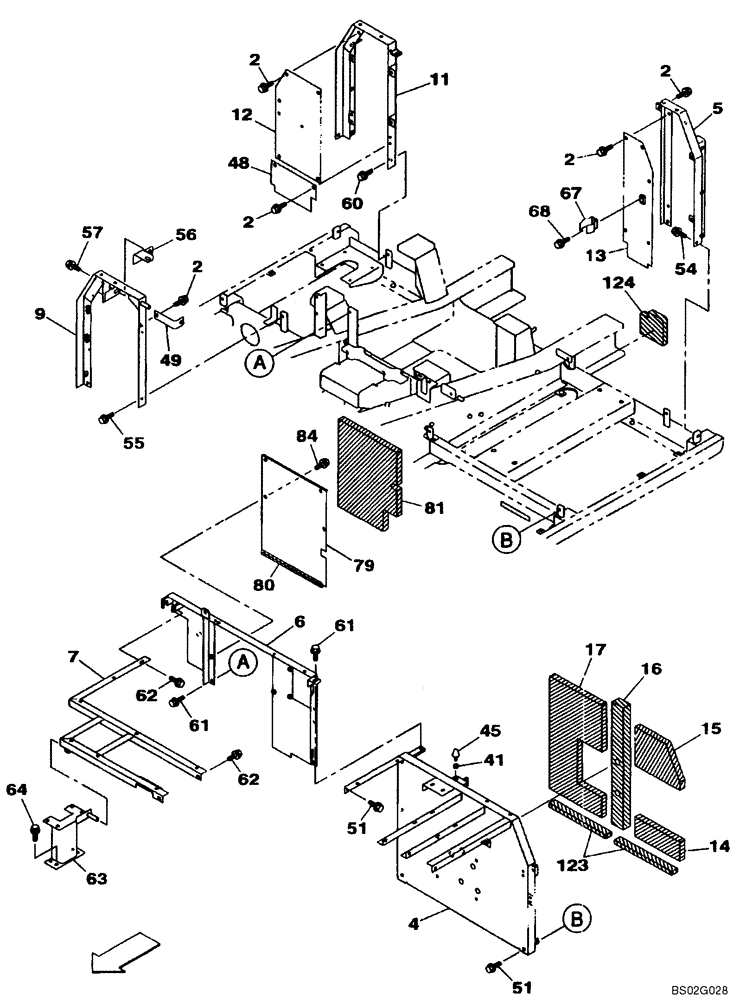

Запчасти Case CX210N (09-05) - FRAMES, COVERS - INSULATION, P.I.N. DAC072099 - DAC0721630 (09) - CHASSIS

UPPER STRUCTURE

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

16шт.

4

KRN2484

SUPPORT ASSY.

1шт.

5

KRN2491

SUPPORT ASSY.

1шт.

6

KRN2492

SUPPORT ASSY.

1шт.

7

KRN2493

SUPPORT ASSY.

1шт.

9

KRN2494

SUPPORT ASSY.

1шт.

11

KRN2496

SUPPORT ASSY.

1шт.

12

KRN2307

COVER

1шт.

13

KRN2564

COVER

1шт.

14

KRN2567

FOAM INSULATION

1шт.

15

KRN2273

FOAM INSULATION

1шт.

16

KRN2571

SEAL

1шт.

17

KRN2566

FOAM INSULATION

1шт.

41

KBH0446

NUT

1шт.

45

151108A1

STOP

1шт.

48

KRN2308

COVER

1шт.

49

KRN2565

SUPPORT

1шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

54

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

56

KNN1346

BRACKET

1шт.

57

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

60

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

61

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

62

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

63

KRN2563

SUPPORT

1шт.

64

166352A1

BOLT

4шт.

67

152772A1

HOLDER

1шт.

68

166345A1

BOLT

2шт.

79

KRN2248

COVER

1шт.

80

HKH0047

GASKET

1шт.

81

KRN2267

FOAM INSULATION

1шт.

84

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

123

KRN2572

SEAL

2шт.

124

KRN2570

SEAL

1шт.
