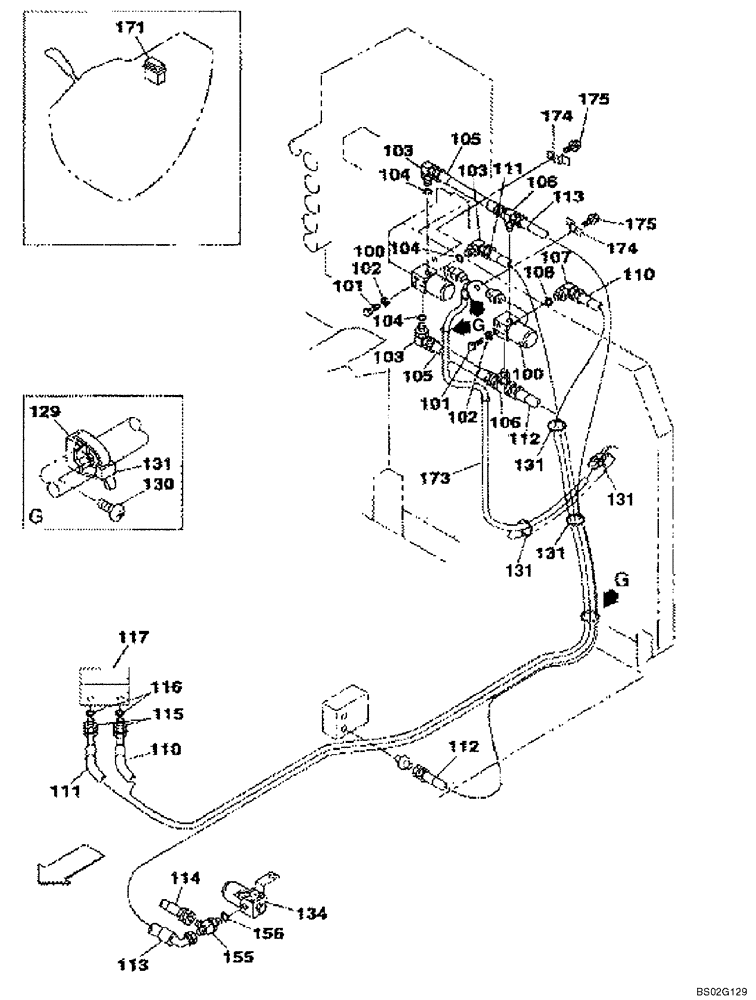

Запчасти Case CX210N (08-61F) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

100

162538A1

VALVE

See Figure 08-64

2шт.

101

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

102

892-11006

LOCK WASHER,M6

4шт.

103

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 104

3шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

106

167321A1

TEE

2шт.

107

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

159009A1

HOSE ASSY.

1шт.

111

162193A1

HOSE ASSY.

1шт.

112

153484A1

HOSE ASSY.

1700 mm (67 in)

1шт.

113

167352A1

HOSE,2500.00 mm

1шт.

114

159235A1

HYDRAULIC HOSE

See Figure 08-61C, 850 mm (KRJ3572)

1шт.

115

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 116

2шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

KHJ17100

VALVE PRESSURE RELIE

Replaces KHJ1655

1шт.

134

162538A1

VALVE

See Figure 08-64

1шт.

129

150860A1

COLLAR

3шт.

130

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

131

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

155

159497A1

TEE

Incl. 156

1шт.

156

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

171

KHR2948

SWITCH

1шт.

173

KHR3329

HARNESS

1шт.

174

165405A1

CLIP

2шт.

175

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
