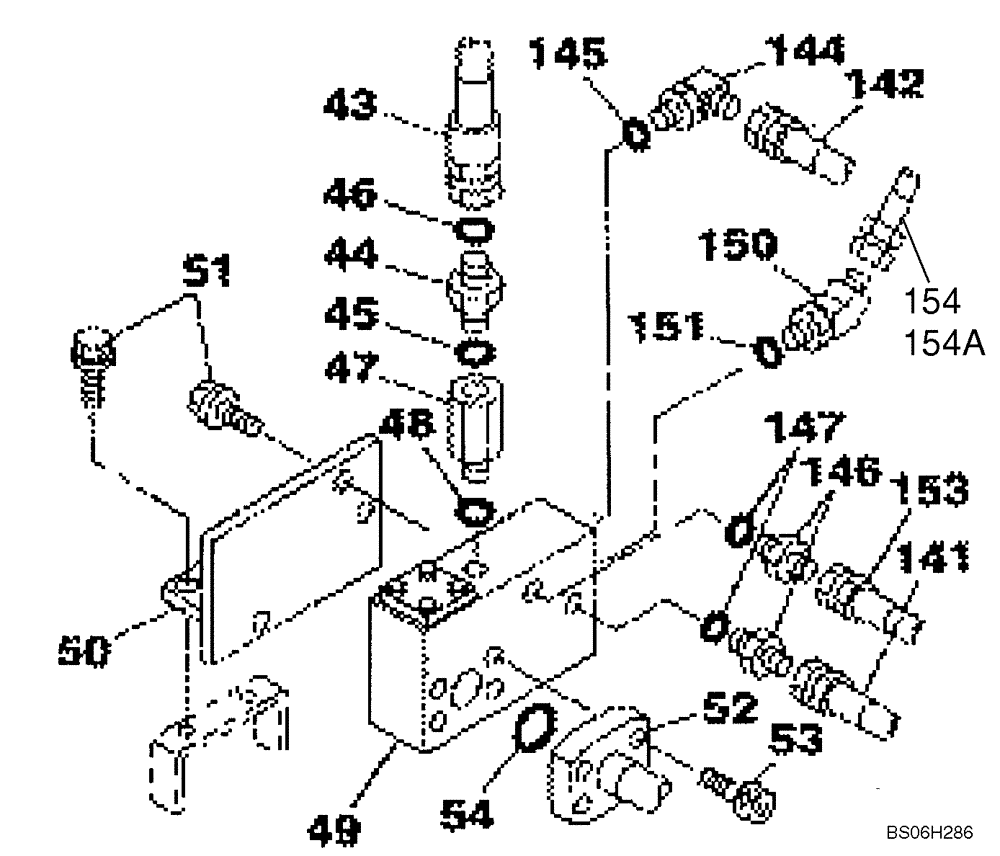

Запчасти Case CX210N (08-61E) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

43

KRJ5936

HYDRAULIC HOSE,19.00 mm ID x 560.00 mm

See Figure 08-61B

1шт.

44

KHJ1348

ADAPTER

Incl. 45

1шт.

45

154503A1

O-RING

1шт.

46

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

47

159198A1

ADAPTER

Incl. 48

1шт.

48

154503A1

O-RING

1шт.

49

KHJ1340

VALVE

Holding; See Figure(s) 08-61B, 08-68

1шт.

50

KRJ5938

BRACKET

1шт.

51

166347A1

BOLT,Sems, M10 x 30mm

5шт.

52

KRJ5940

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

53

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

54

154528A1

O-RING

1шт.

141

159235A1

HYDRAULIC HOSE

See Figure 08-61B

1шт.

142

159019A1

HOSE ASSY.

See Figure 08-61B

1шт.

144

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 145

1шт.

145

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

146

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 147

2шт.

147

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

150933A1

ELBOW

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

164791A1

HOSE ASSY.

See Figure 08-61B

1шт.

154

162563A1

HOSE ASSY.

See Figure 08-61B; No Longer Used, Service With 159235A1

1шт.

154a

159235A1

HYDRAULIC HOSE

See Figure 08-61B, 850 mm (KRJ3572)

1шт.
