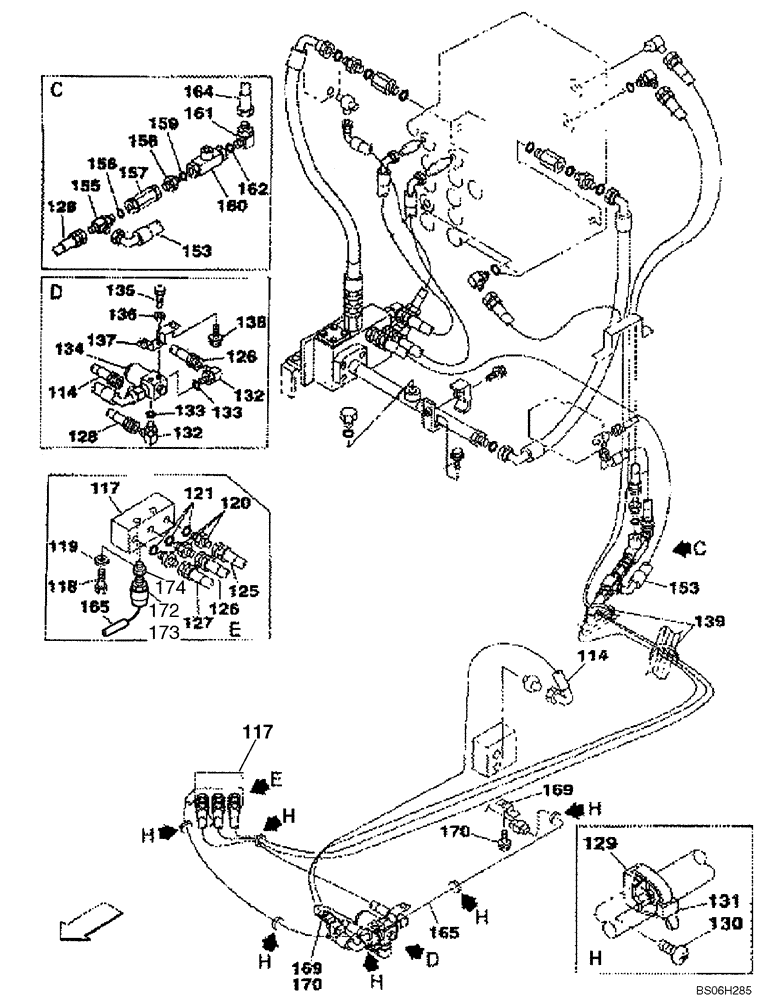

Запчасти Case CX210N (08-61C) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (Feb 24 2012 9:51AM) (08) - HYDRAULICS

114

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

117

KHJ17100

VALVE PRESSURE RELIE

Replaces KHJ1655

1шт.

118

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

119

153081A1

WASHER

2шт.

120

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 121

3шт.

121

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

151904A1

HOSE,6.3mm ID x 3100mm L

See Figure 08-61B

1шт.

126

161272A1

HOSE

See Figure 08-61B

1шт.

127

165397A1

HYDRAULIC HOSE

See Figure 08-61B

1шт.

128

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

129

150860A1

COLLAR

6шт.

130

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

131

150496A1

MOUNTING CLIP

250 mm (10 in)

6шт.

132

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

162538A1

VALVE

Solenoid; See Figure 08-64

1шт.

135

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

136

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

137

KRJ5751

BRACKET

1шт.

138

166346A1

BOLT,Sems, M10

2шт.

139

150071A1

MOUNTING CLIP

2шт.

153

164791A1

HOSE ASSY.

See Figure 08-61B

1шт.

155

159497A1

TEE

Incl. 156

1шт.

156

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

157

167853A1

ADAPTER

1шт.

158

162654A1

HYD CONNECTOR

Incl. 159

1шт.

159

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

160

KHJ17090

VALVE PRESSURE RELIE

Shuttle; Replaces 158186A1

1шт.

161

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 162

1шт.

162

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

164

167353A1

HOSE,400.00 mm

See Figure 08-61B

1шт.

165

KHR3351

HARNESS

1шт.

169

165405A1

CLIP

2шт.

170

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

172

159599A1

PRESSURE SWITCH

No Longer Used, For Service Order KHR10790, Ref 173 And KHJ11460, Ref 174

1шт.

173

KHR10790

PRESSURE SWITCH

1шт.

174

KHJ11460

ADAPTER

1шт.
