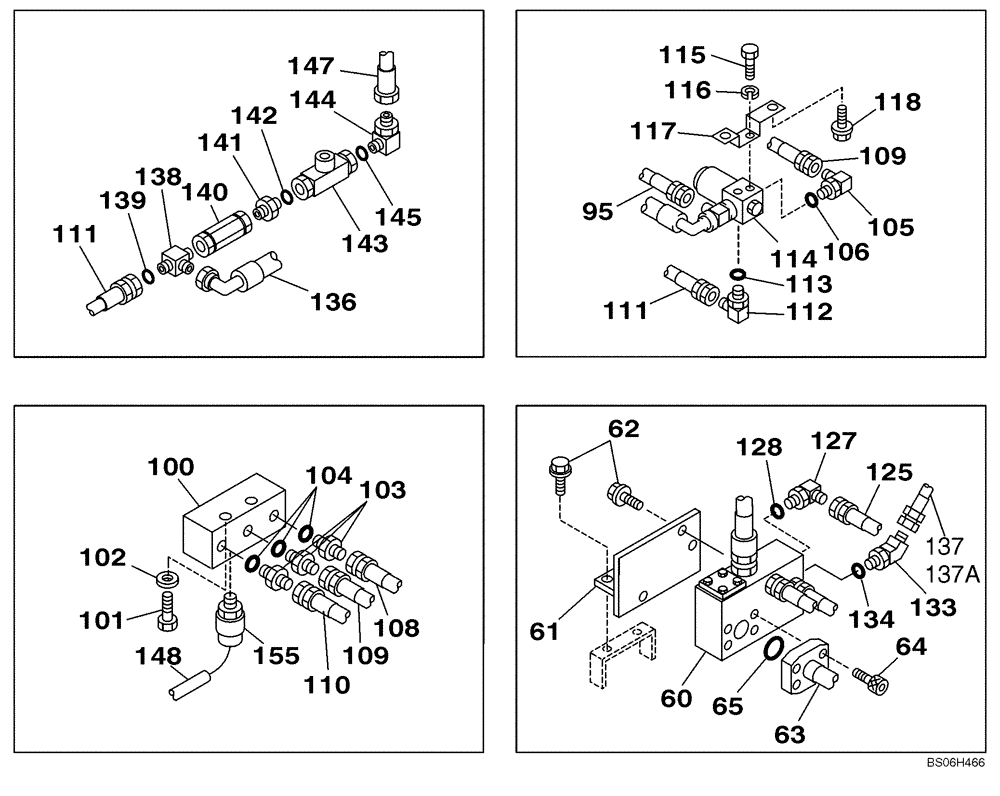

Запчасти Case CX210N (08-60) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

60

KHJ1340

VALVE

See Figure(s) 08 -59, 8 -68

1шт.

61

KRJ5938

BRACKET

1шт.

62

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

63

KRJ5940

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

64

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

65

154528A1

O-RING

1шт.

95

159235A1

HYDRAULIC HOSE

See Figure 08 -59

1шт.

100

KHJ17100

VALVE PRESSURE RELIE

See Figure 08 -59, Replaces KHJ1655

1шт.

101

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

102

153081A1

WASHER

2шт.

103

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 104

3шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

151904A1

HOSE,6.3mm ID x 3100mm L

See Figure 08 -59

1шт.

109

161272A1

HOSE

1шт.

110

165397A1

HYDRAULIC HOSE

See Figure 08 -59

1шт.

111

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

112

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 113

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

162538A1

VALVE

See Figure 08-64

1шт.

115

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

116

892-11006

LOCK WASHER,M6

2шт.

117

KRJ5751

BRACKET

1шт.

118

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

127

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 128

1шт.

128

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

150933A1

ELBOW

Incl. 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

137

162563A1

HOSE ASSY.

No Loner Used, Replaced By Ref 137A

1шт.

137a

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

138

159497A1

TEE

Incl. 139

1шт.

139

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

140

167853A1

ADAPTER

1шт.

141

162654A1

HYD CONNECTOR

Incl. 142

1шт.

142

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

KHJ17090

VALVE PRESSURE RELIE

; Replaces 158186A1

1шт.

144

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 145

1шт.

145

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

147

167353A1

HOSE,400.00 mm

1шт.

148

KHR3351

HARNESS

Replaces KHR2718

1шт.

155

159599A1

PRESSURE SWITCH

1шт.
